SKU: IR12x15x22.5-MB

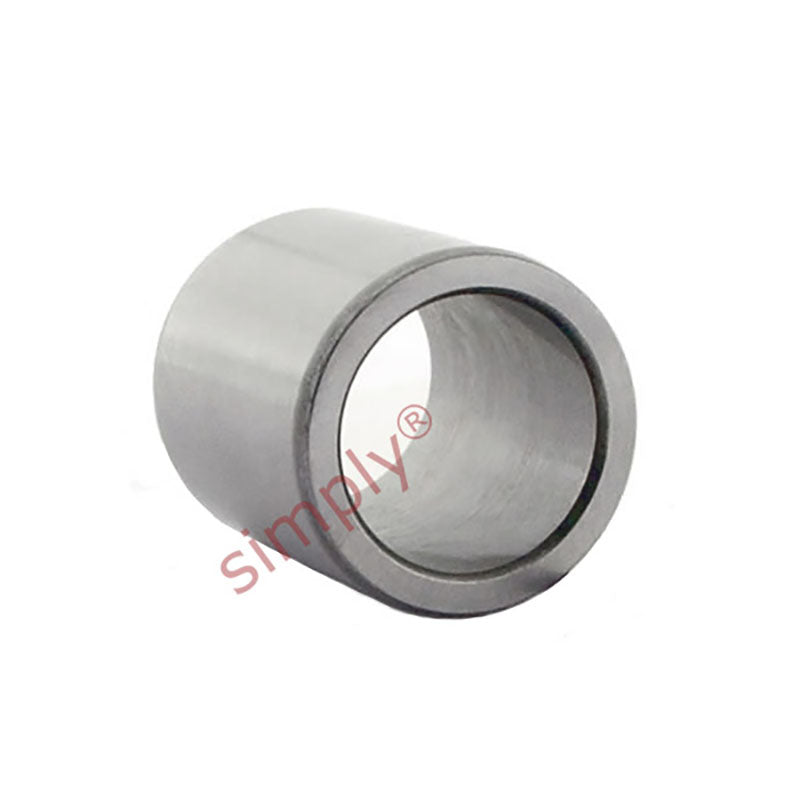

Major Brand Needle Roller Inner Ring IR12x15x22.5mm

Name: Major Brand Needle Roller Inner Ring IR12x15x22.5mm
Brand: Major Brand
SKU: IR12x15x22.5-MB
Price: 12.00 CHF
Availability: InStock

CHF 12.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 9.37

19+ CHF 8.84

29+ CHF 8.74

39+ CHF 8.63

49+ CHF 8.53

74+ CHF 8.42

99+ CHF 7.89

199+ CHF 7.79

249+ CHF 7.68

499+ CHF 7.58

999+ CHF 7.37

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Inner Rings : Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use with needle roller bearings a lead in either side of the sleeve is provided. Some sizes are available with a lubrication hole and are suffixed with IS1.
Benefits: Hardened and ground, precision component, lead in for easier assembly.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 12mm
Outside Diameter:: 15mm
Width:: 22.5mm

Technical

d	12mm
F	15mm
B	22.5mm
r1r2	0.3mm
Weight	11 g
