• Major Brand Needle Roller Inner Ring IR20x24x16mm
1 1

SKU: IR20x24x16-MB

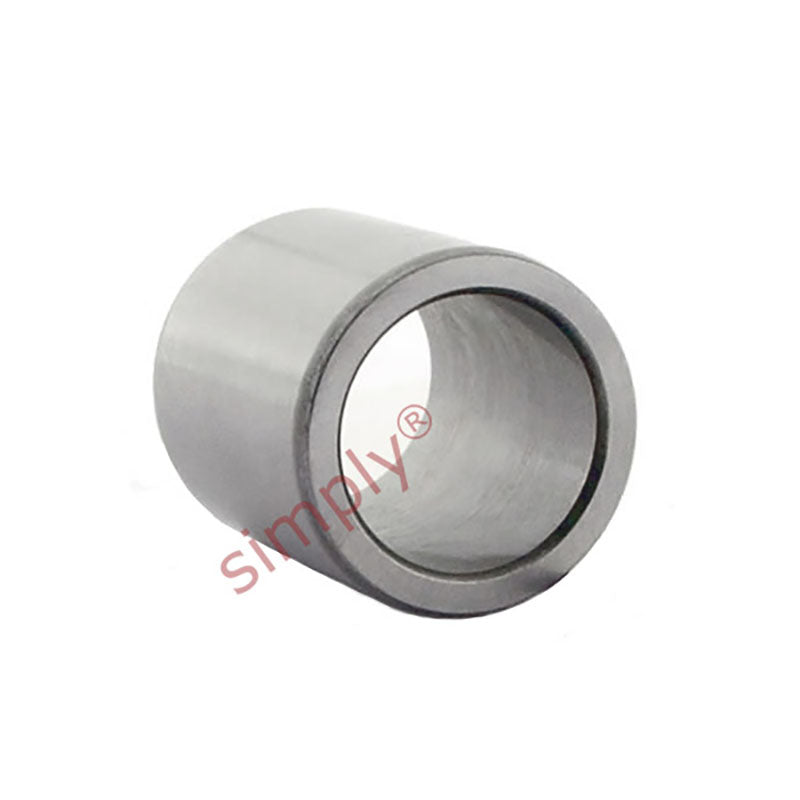

Major Brand Needle Roller Inner Ring IR20x24x16mm

Major Brand Needle Roller Inner Ring IR20x24x16mm
CHF 10.00 ex VAT
CHF 10.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 7.31
19+ CHF 6.90
29+ CHF 6.82
39+ CHF 6.73
49+ CHF 6.65
74+ CHF 6.57
99+ CHF 6.16
199+ CHF 6.08
249+ CHF 6.00
499+ CHF 5.91
999+ CHF 5.75
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Inner Rings : Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use with needle roller bearings a lead in either side of the sleeve is provided. Some sizes are available with a lubrication hole and are suffixed with IS1.
Benefits: Hardened and ground, precision component, lead in for easier assembly.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
20mm
Outside Diameter:
24mm
Width:
16mm
Technical
d 20mm
F 24mm
B 16mm
r1r2 0.3mm
Weight 17 g
