SKU: JM205149/110/Q-SKF

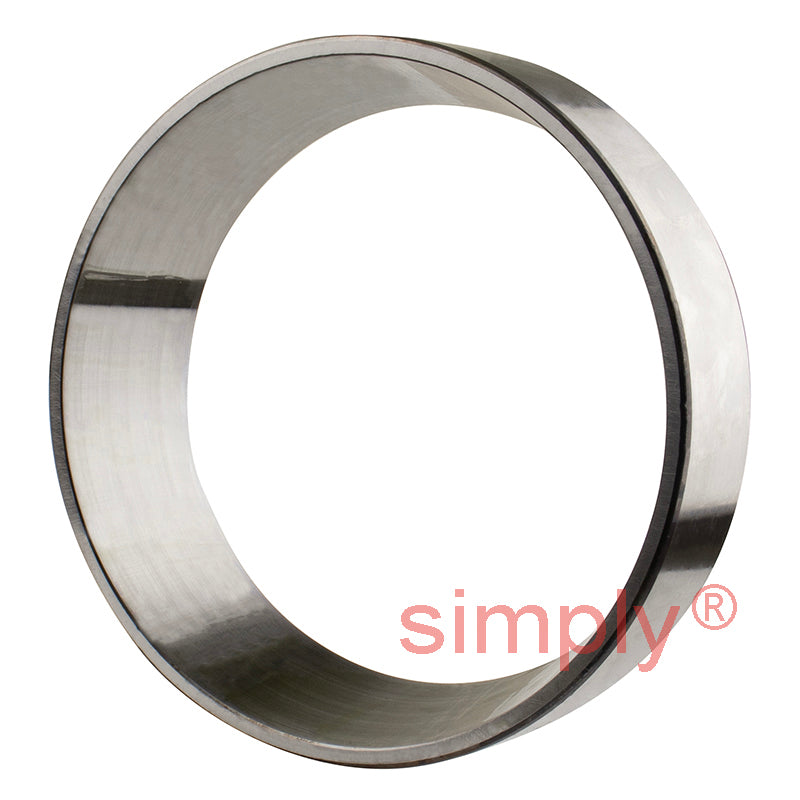

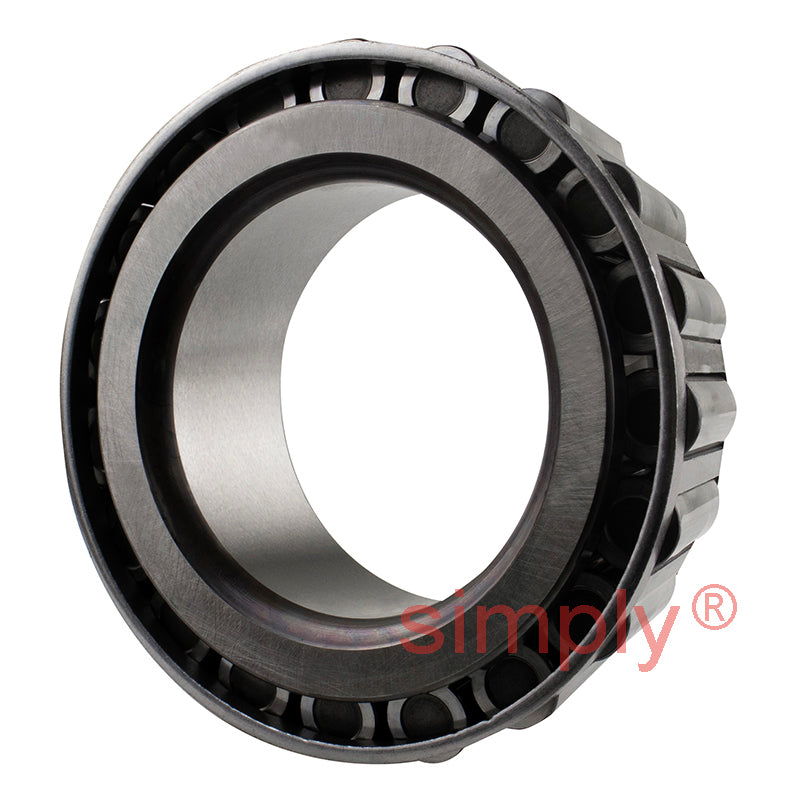

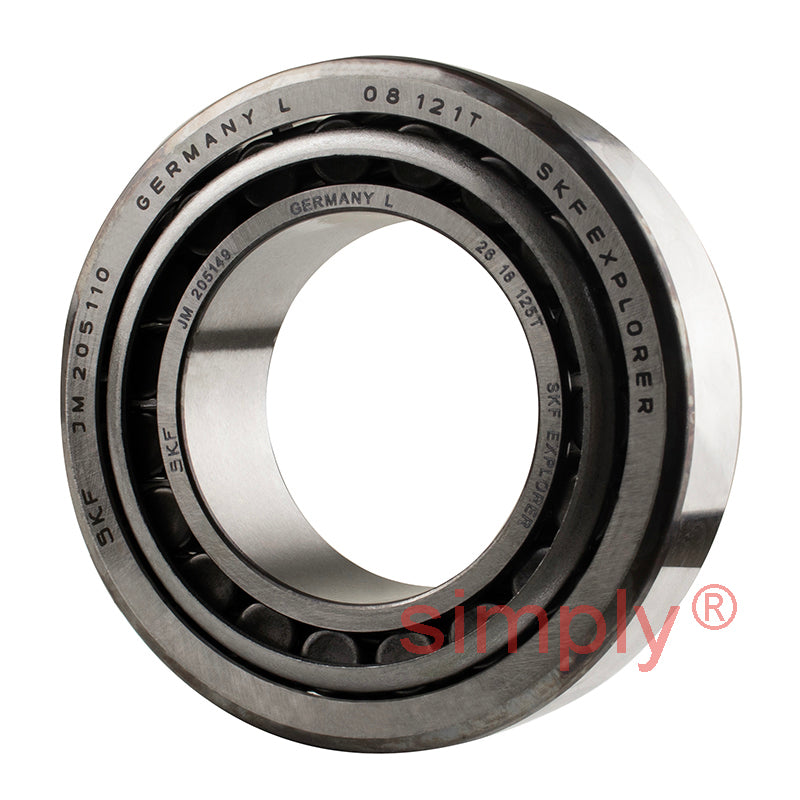

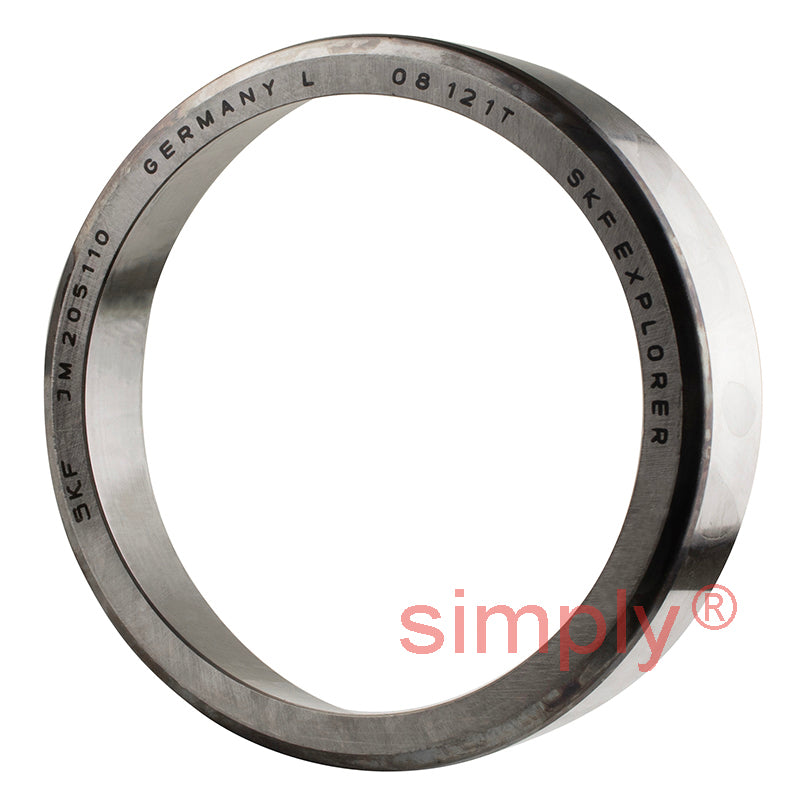

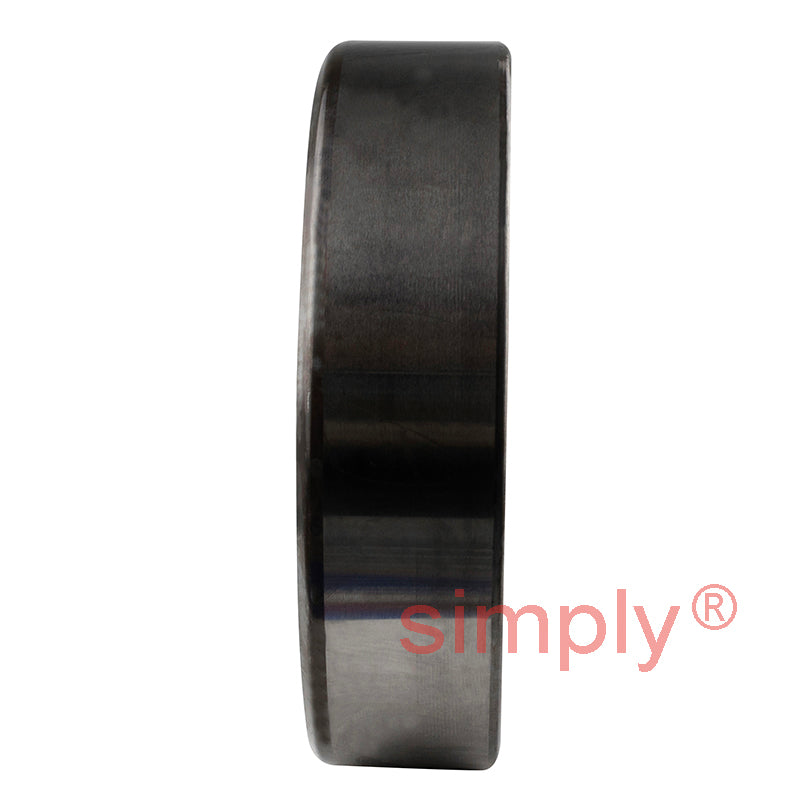

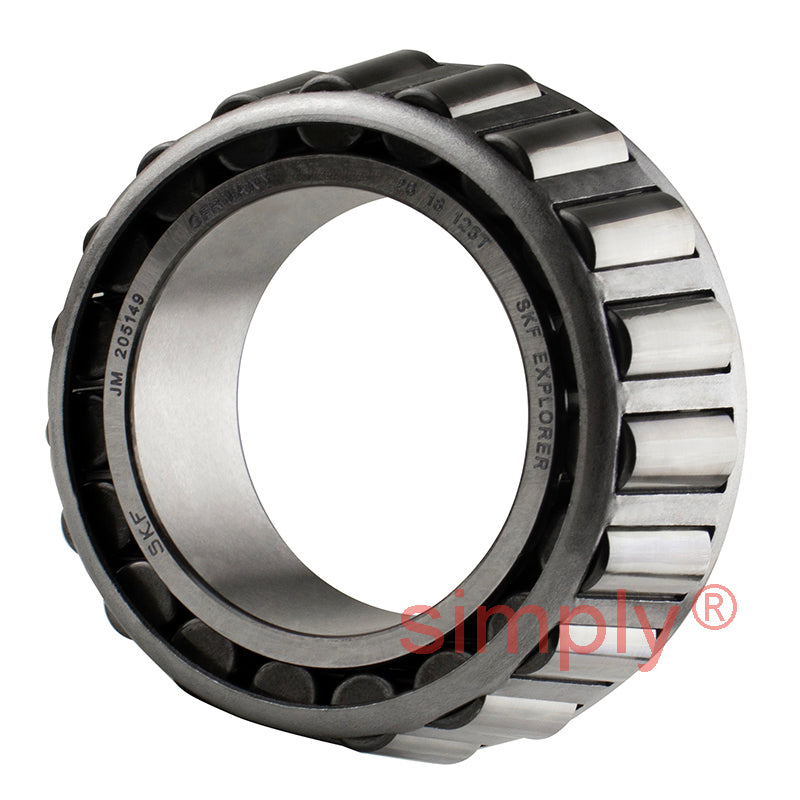

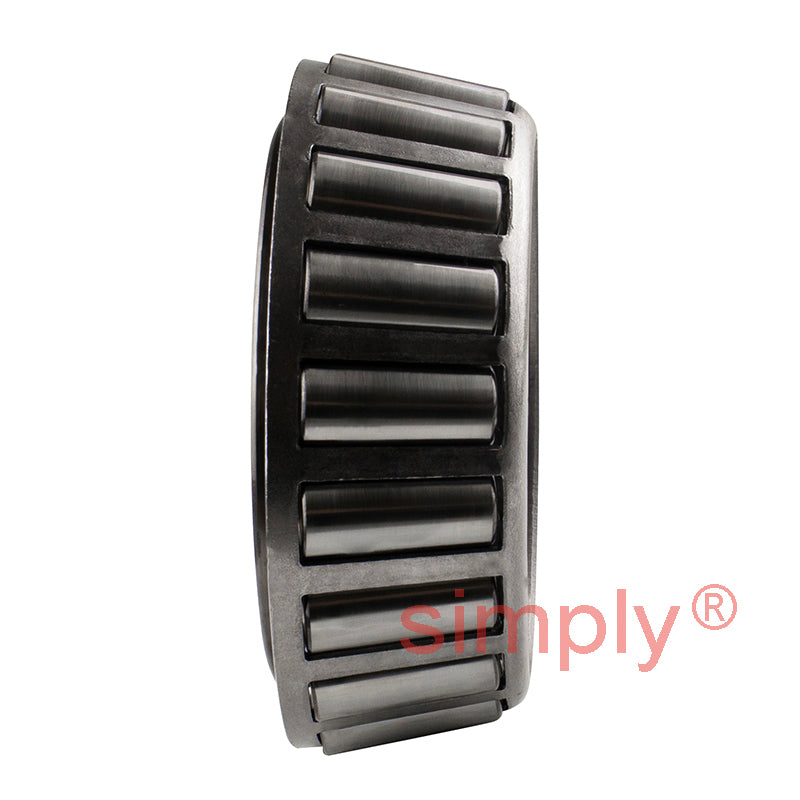

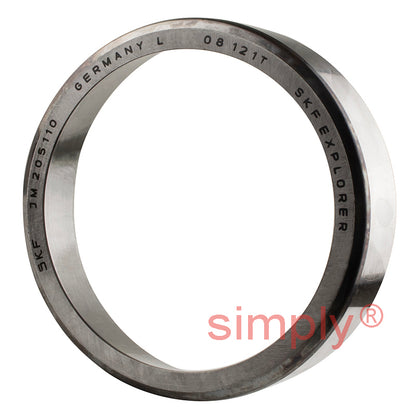

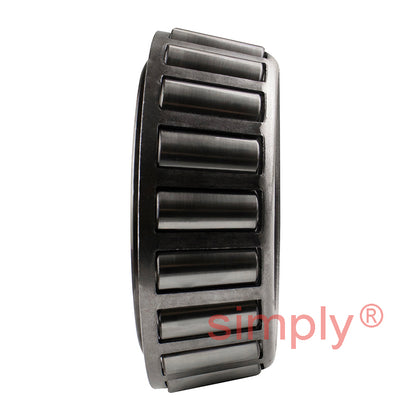

SKF JM205149110Q Metric Single Row Taper Roller Bearing 50x90x28mm
SKF JM205149110Q Metric Single Row Taper Roller Bearing 50x90x28mm
Regular price
CHF 90.00
ex VAT
Regular price
Sale price
CHF 90.00
ex VAT
In stock
Price Break
10+
CHF 71.02
19+
CHF 67.03
29+
CHF 66.23
39+
CHF 65.43
49+
CHF 64.64
74+
CHF 63.84
99+
CHF 59.85
199+
CHF 59.05
249+
CHF 58.25
499+
CHF 57.46
999+
CHF 55.86
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 28mm
- Seals / Shields:
- None
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| T | 28mm |
| Dynamic load | 106 kN |
| Static load | 140 kN |
| Fatigue load limit Pu | 16 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.75 kg |
| d1 | 68.7mm |
| B | 28mm |
| C | 23mm |
| r1r2 min | 3mm |
| r3r4 min | 2.5mm |
| a | 20mm |
| da max | 58mm |
| db min | 64mm |
| Da min | 78mm |
| Da max | 78mm |
| Db min | 85mm |
| Ca min | 5mm |
| Cb min | 5mm |
| ra max | 2.5mm |
| rb max | 2mm |
| Calculation factor e | 0.33 |
| Calculation factor Y | 1.8 |
| Calculation factor Y0 | 1 |
