SKU: JSC039SS316-JUB

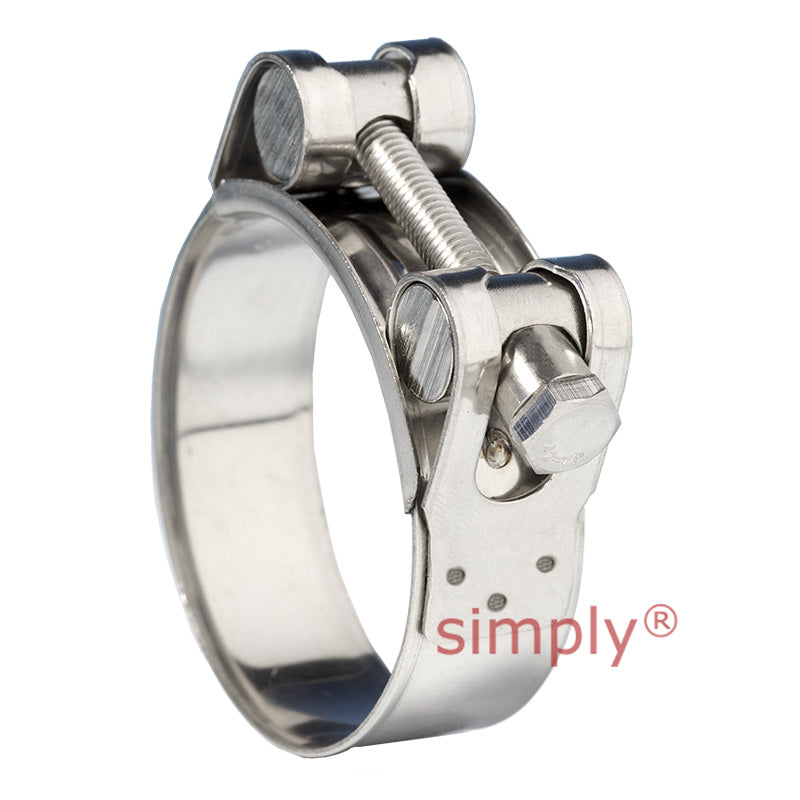

JSC039SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 36mm-39mm Band Width 20mm

Name: JSC039SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 36mm-39mm Band Width 20mm
Brand: Jubilee
SKU: JSC039SS316-JUB
Price: 10.00 CHF
Availability: InStock

CHF 10.00 ex VAT

Sale Sold out

In stock

Price Break

3+ CHF 8.75

5+ CHF 8.40

9+ CHF 8.22

19+ CHF 7.96

49+ CHF 7.78

74+ CHF 7.34

99+ CHF 6.19

199+ CHF 6.19

249+ CHF 6.19

499+ CHF 6.19

999+ CHF 6.19

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee^® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.

Brand / Quality:: Jubilee - High Quality
Width:: 20mm
Min Adjustment Range:: 36mm
Max Adjustment Range:: 39mm

Technical

Adjustment Range	36mm - 39mm
Band Width (+/- 0.1)	20mm
Band Thickness (+/- 0.1)	1mm
Recommended Torque	6Nm
Maximum Torque	8Nm
Screw Head	10mm
