SKU: JSC051MS-JUB

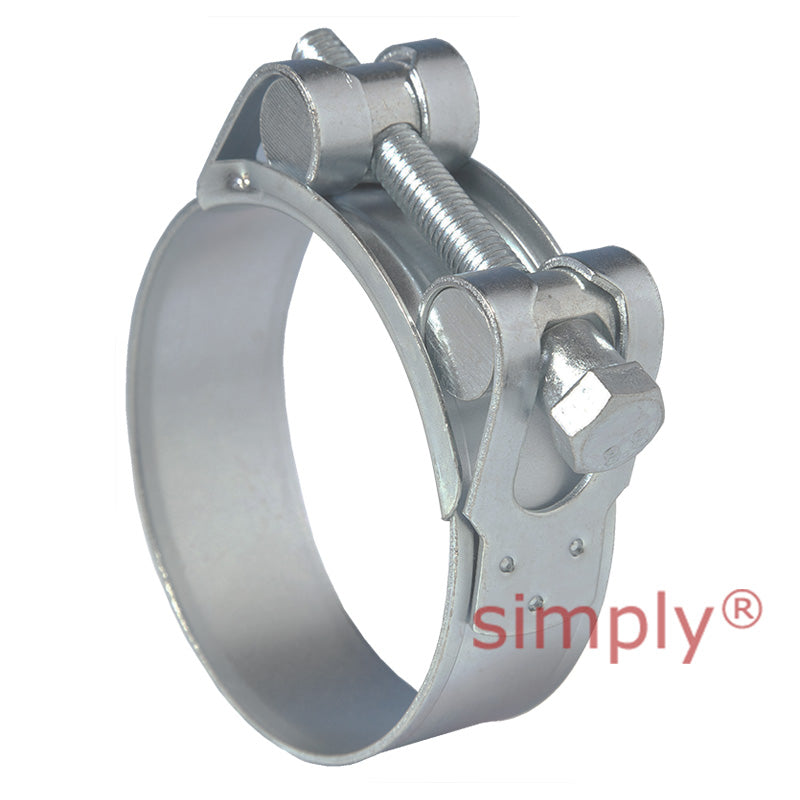

JSC051MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 48mm-51mm Band Width 20mm
JSC051MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 48mm-51mm Band Width 20mm
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
Low stock
Price Break
3+
CHF 3.35
5+
CHF 2.87
9+
CHF 2.63
19+
CHF 2.39
49+
CHF 1.91
74+
CHF 1.67
99+
CHF 1.43
199+
CHF 0.00
249+
CHF 0.00
499+
CHF 0.00
999+
CHF 0.00
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 20mm
- Min Adjustment Range:
- 48mm
- Max Adjustment Range:
- 51mm
Technical
Technical
| Adjustment Range | 48mm - 51mm |
|---|---|
| Band Width (+/- 0.1) | 20mm |
| Band Thickness (+/- 0.1) | 1mm |
| Recommended Torque | 6Nm |
| Maximum Torque | 8Nm |
| Screw Head | 10mm |
