SKU: JSC067MS-JUB

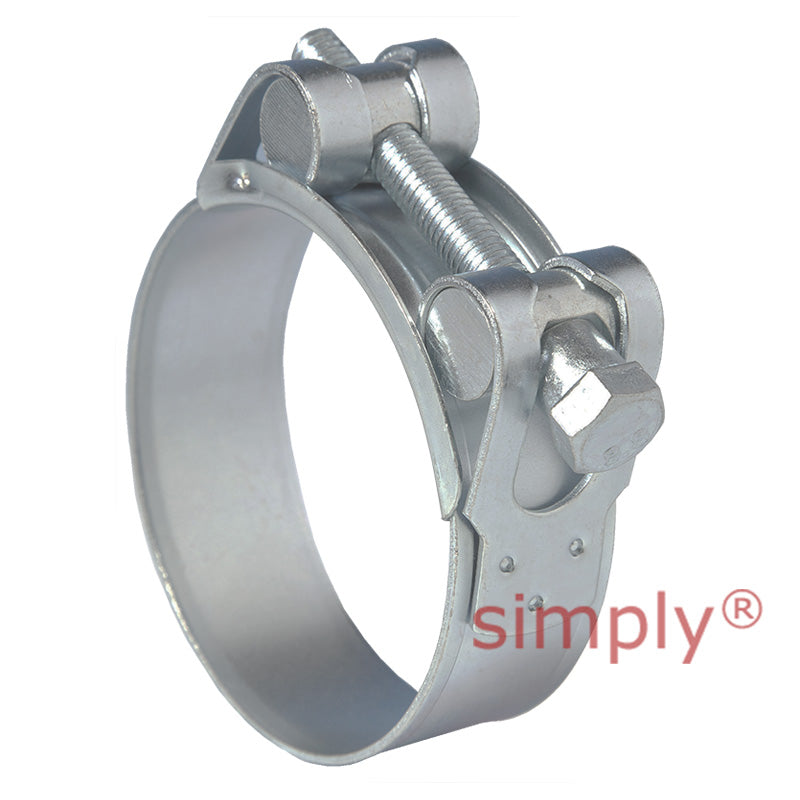

JSC067MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 64mm-67mm Band Width 25mm
JSC067MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 64mm-67mm Band Width 25mm
Regular price
CHF 5.37
ex VAT
Regular price
Sale price
CHF 5.37
ex VAT
In stock
Price Break
5+
CHF 5.32
10+
CHF 5.10
20+
CHF 4.99
50+
CHF 4.83
100+
CHF 4.73
500+
CHF 4.46
1000+
CHF 3.76
Couldn't load pickup availability
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 64mm
- Max Adjustment Range:
- 67mm
Technical
Technical
| Adjustment Range | 64mm - 67mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.5mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
