SKU: JSC091SS316-JUB

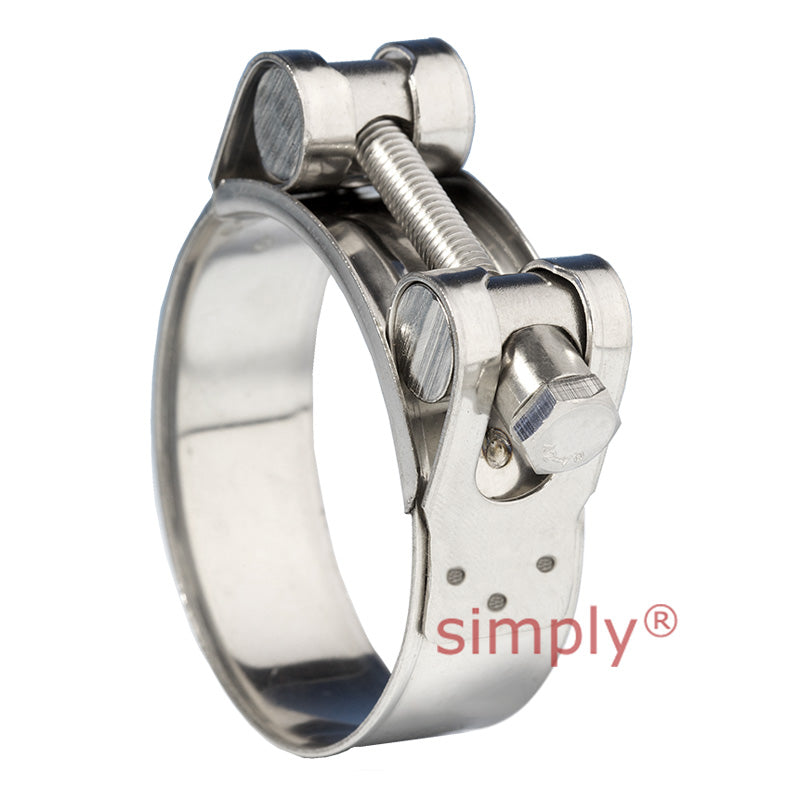

JSC091SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 86mm-91mm Band Width 25mm

Name: JSC091SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 86mm-91mm Band Width 25mm
Brand: Jubilee
SKU: JSC091SS316-JUB
Price: 23.00 CHF
Availability: InStock

CHF 23.00 ex VAT

Sale Sold out

Low stock

Price Break

3+ CHF 19.72

5+ CHF 18.92

9+ CHF 18.53

19+ CHF 17.93

49+ CHF 17.53

74+ CHF 16.53

99+ CHF 13.94

199+ CHF 0.00

249+ CHF 0.00

499+ CHF 0.00

999+ CHF 0.00

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee^® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.

Brand / Quality:: Jubilee - High Quality
Width:: 25mm
Min Adjustment Range:: 86mm
Max Adjustment Range:: 91mm

Technical

Adjustment Range	86mm - 91mm
Band Width (+/- 0.1)	25mm
Band Thickness (+/- 0.1)	1.2mm
Recommended Torque	18.5Nm
Maximum Torque	25Nm
Screw Head	13mm
