SKU: JSC148SS-JUB

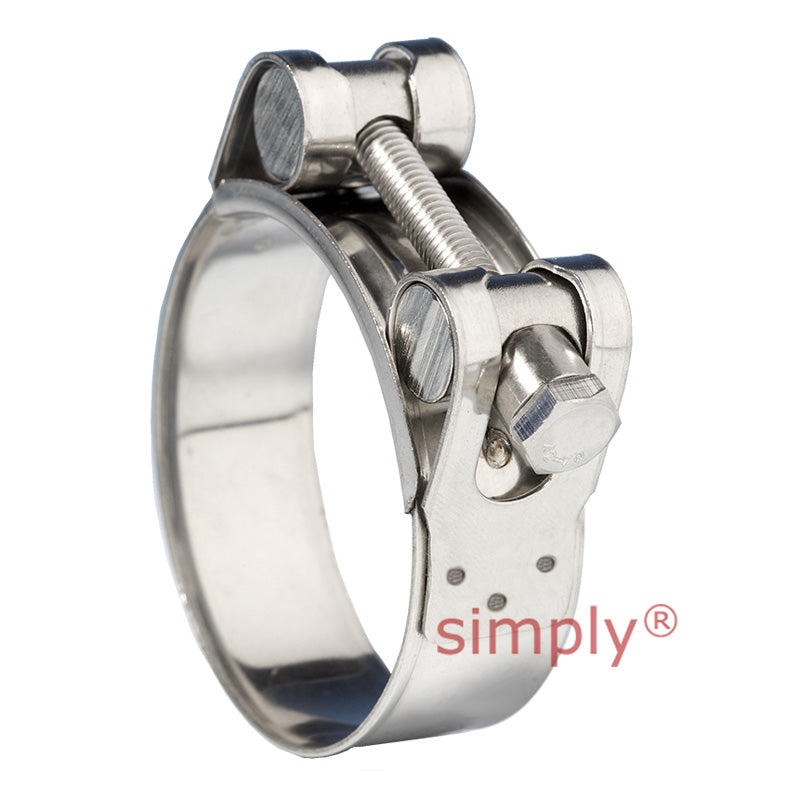

JSC148SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 140mm-148mm Band Width 25mm
JSC148SS 304 Stainless Steel Jubilee Superclamp Clip Adjustment Range 140mm-148mm Band Width 25mm
Regular price
CHF 15.00
ex VAT
Regular price
Sale price
CHF 15.00
ex VAT
Low stock
Price Break
3+
CHF 13.13
5+
CHF 12.60
9+
CHF 12.33
19+
CHF 11.93
49+
CHF 11.67
74+
CHF 11.01
99+
CHF 9.28
199+
CHF 0.00
249+
CHF 0.00
499+
CHF 0.00
999+
CHF 0.00
Description
Description
304 Stainless Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 140mm
- Max Adjustment Range:
- 148mm
Technical
Technical
| Adjustment Range | 140mm - 148mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.2mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
