SKU: JSC187SS316-JUB

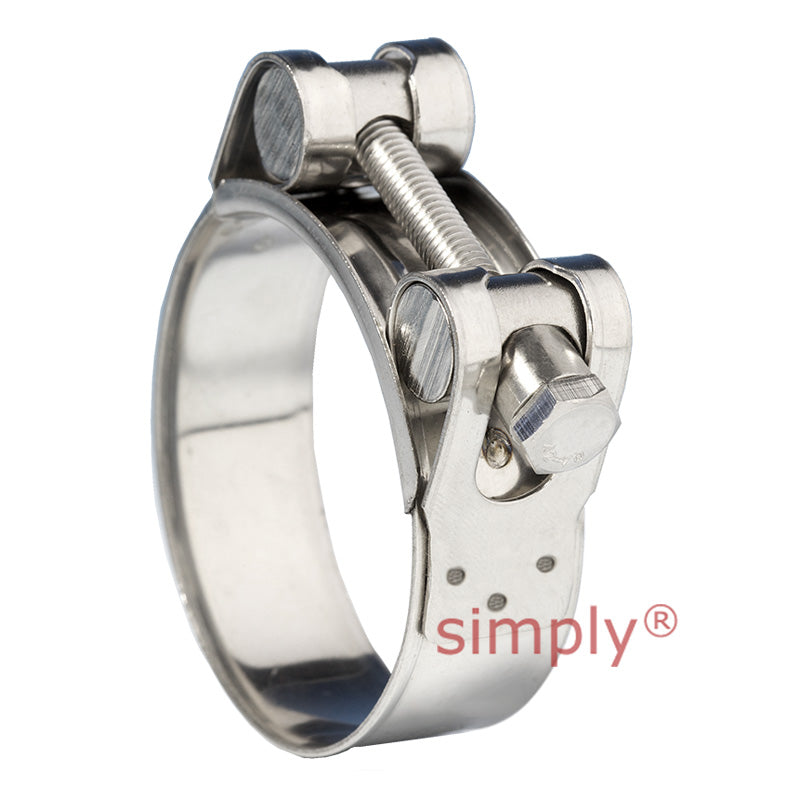

JSC187SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 175mm-187mm Band Width 25mm

Name: JSC187SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 175mm-187mm Band Width 25mm
Brand: Jubilee
SKU: JSC187SS316-JUB
Price: 30.00 CHF
Availability: InStock

CHF 30.00 ex VAT

Sale Sold out

Low stock

Price Break

3+ CHF 26.30

5+ CHF 25.24

9+ CHF 24.71

19+ CHF 23.91

49+ CHF 23.38

74+ CHF 22.05

99+ CHF 18.60

199+ CHF 0.00

249+ CHF 0.00

499+ CHF 0.00

999+ CHF 0.00

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee^® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.

Brand / Quality:: Jubilee - High Quality
Width:: 25mm
Min Adjustment Range:: 175mm
Max Adjustment Range:: 187mm

Technical

Adjustment Range	175mm - 187mm
Band Width (+/- 0.1)	25mm
Band Thickness (+/- 0.1)	1.5mm
Recommended Torque	18.5Nm
Maximum Torque	25Nm
Screw Head	13mm
