SKU: JSC200MS-JUB

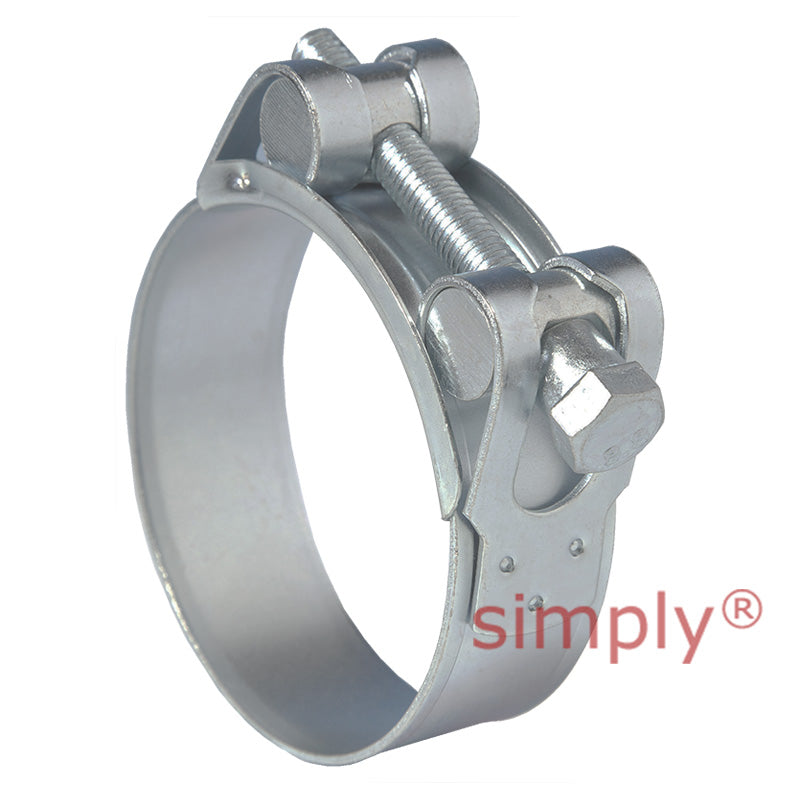

JSC200MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 188mm-200mm Band Width 25mm
JSC200MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 188mm-200mm Band Width 25mm
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
In stock
Price Break
3+
CHF 6.55
5+
CHF 6.29
9+
CHF 6.16
19+
CHF 5.96
49+
CHF 5.83
74+
CHF 5.49
99+
CHF 4.63
199+
CHF 0.00
249+
CHF 0.00
499+
CHF 0.00
999+
CHF 0.00
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 188mm
- Max Adjustment Range:
- 200mm
Technical
Technical
| Adjustment Range | 188mm - 200mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.8mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
