SKU: JSC213MS-JUB

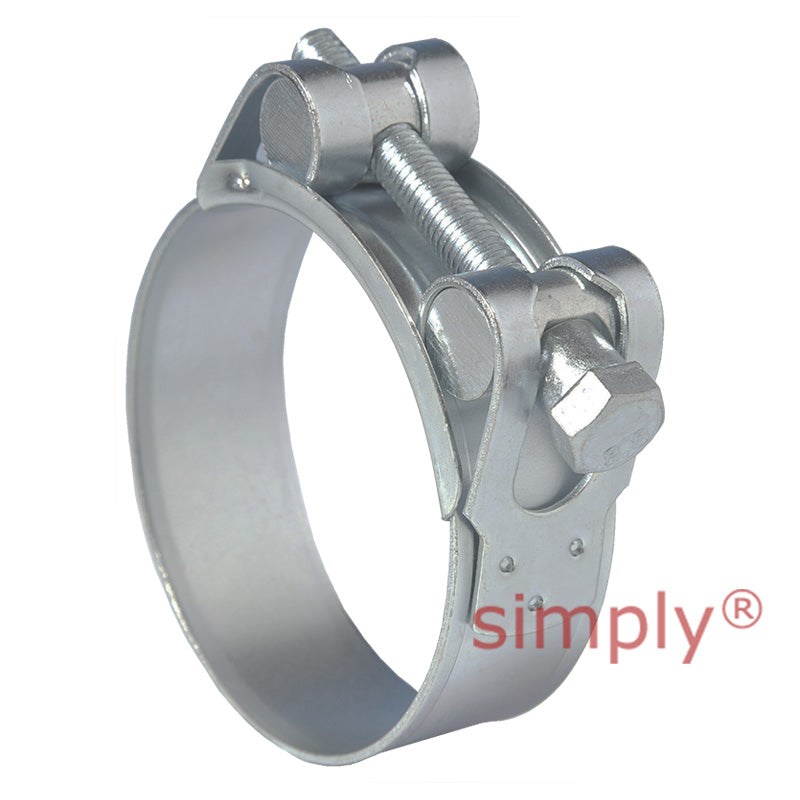

JSC213MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 201mm-213mm Band Width 25mm
JSC213MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 201mm-213mm Band Width 25mm
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
In stock
Price Break
3+
CHF 6.56
5+
CHF 6.30
9+
CHF 6.17
19+
CHF 5.97
49+
CHF 5.83
74+
CHF 5.50
99+
CHF 4.64
199+
CHF 0.00
249+
CHF 0.00
499+
CHF 0.00
999+
CHF 0.00
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 201mm
- Max Adjustment Range:
- 213mm
Technical
Technical
| Adjustment Range | 201mm - 213mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.8mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
