SKU: JSC265SS316-JUB

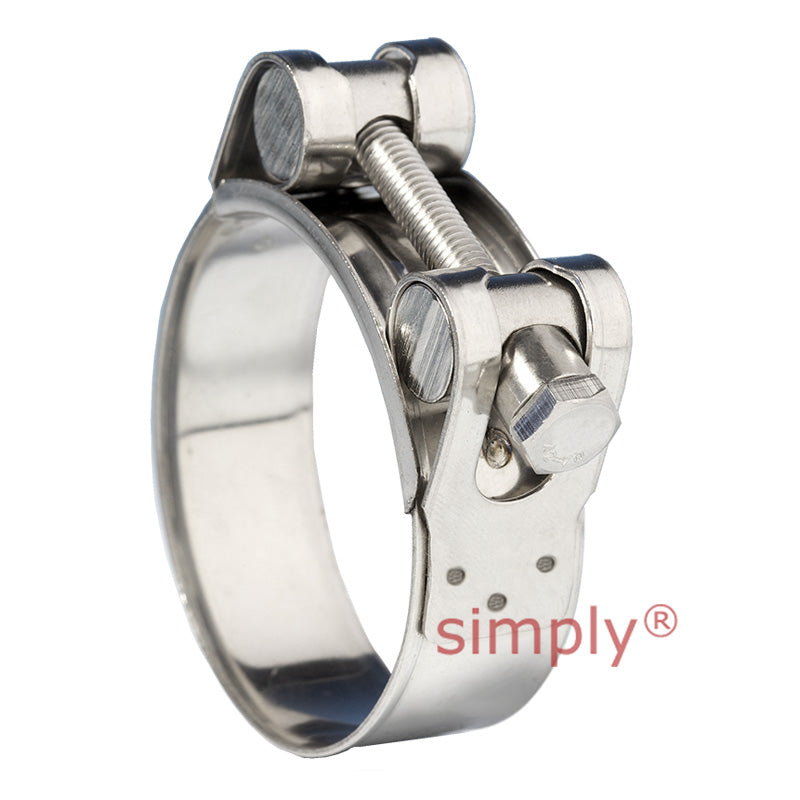

JSC265SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 253mm-265mm Band Width 25mm

Name: JSC265SS316 316 Stainless Steel (HNSS) Jubilee Superclamp Clip Adjustment Range 253mm-265mm Band Width 25mm
Brand: Jubilee
SKU: JSC265SS316-JUB
Price: 33.00 CHF
Availability: InStock

CHF 33.00 ex VAT

Sale Sold out

In stock

Price Break

3+ CHF 25.87

5+ CHF 24.42

9+ CHF 24.13

19+ CHF 23.84

49+ CHF 23.55

74+ CHF 23.26

99+ CHF 21.80

199+ CHF 21.51

249+ CHF 21.22

499+ CHF 20.93

999+ CHF 20.35

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

316 Stainless Steel (HNSS) Jubilee Superclamp Clips: Jubilee^® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: High corrosion resistance, Single nut adjustment, Smooth band to protect hose line, 360 degree seal.

Brand / Quality:: Jubilee - High Quality
Width:: 25mm
Min Adjustment Range:: 253mm
Max Adjustment Range:: 265mm

Technical

Adjustment Range	253mm - 265mm
Band Width (+/- 0.1)	25mm
Band Thickness (+/- 0.1)	1.5mm
Recommended Torque	18.5Nm
Maximum Torque	25Nm
Screw Head	13mm
