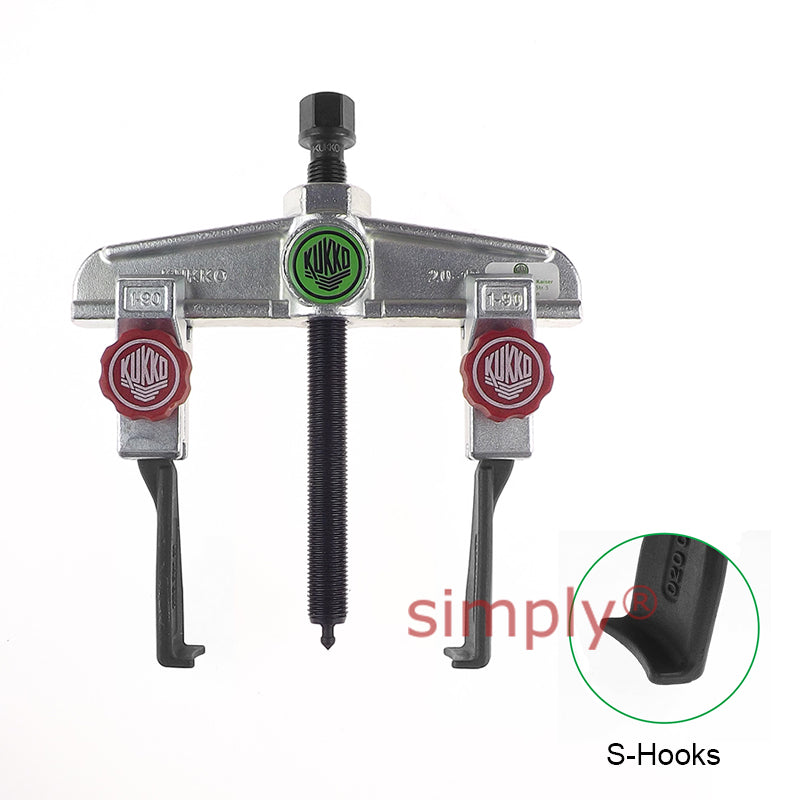

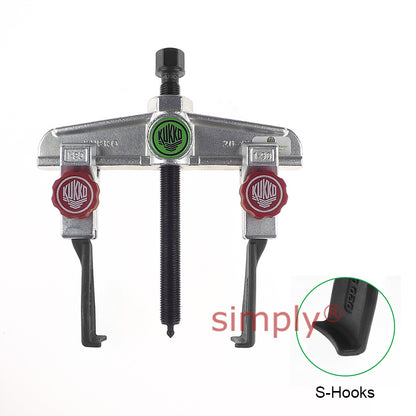

KUKKO Series 20-10+S Universal 2-Jaw Puller with Sliding Parallel Narrow Quick Adjusting Jaws 120mm

Name: KUKKO Series 20-10+S Universal 2-Jaw Puller with Sliding Parallel Narrow Quick Adjusting Jaws 120mm
Brand: KUKKO
SKU: K-20-10+S-KUK
Price: 215.37 CHF
Availability: InStock

CHF 215.37 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 191.68

19+ CHF 180.91

29+ CHF 178.76

39+ CHF 176.60

49+ CHF 174.45

74+ CHF 172.30

99+ CHF 161.53

199+ CHF 159.37

249+ CHF 157.22

499+ CHF 155.07

999+ CHF 150.76

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

KUKKO Series 20 Universal 2-Jaw Puller with Sliding Parallel Narrow Quick Adjusting Jaws:

Thin pulling hook with quick adjusting capability quick adjust.

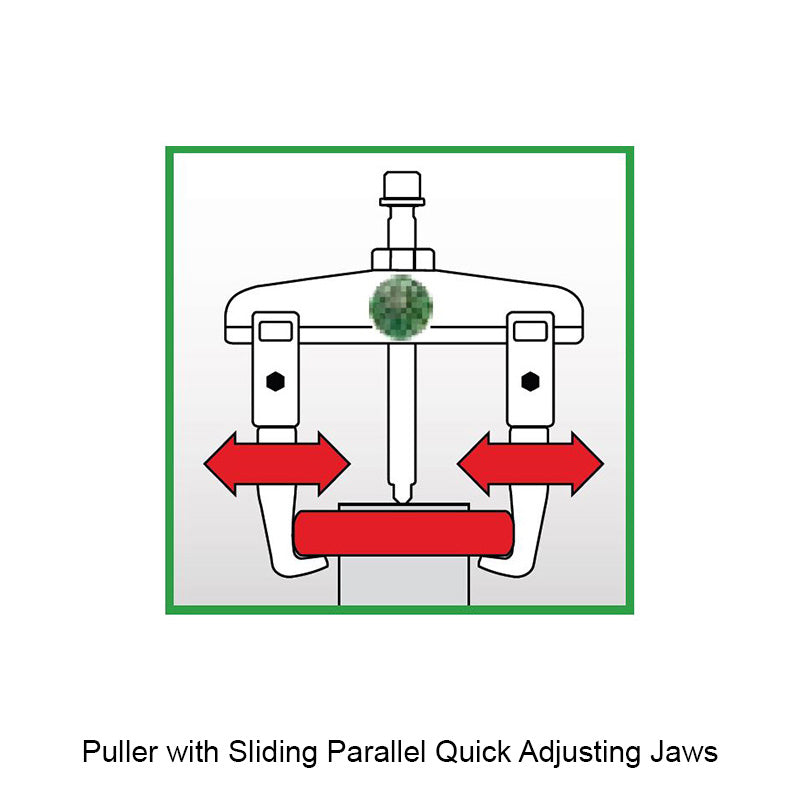

Parallel pulling hooks in every position, even with full load.

Pulling hooks with infinitely variable adjustment on the cross-beam.

Optimal adjustment of the spindle to the shaft with 2-sided spindle tip.

Mechanical pressure screw.

Benefits:

The thin pulling hooks are suitable for narrow, difficult-to-access locations.

A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.

Can be installed on various pulling hooks and variable reach thanks to jaw extensions.

Turning the pulling hooks enables them to be used both internally and externally.

Suitable for pulling asymmetric workpieces.

Brand / Quality:: KUKKO - High Quality
Width:: 120mm
Length:: 100mm

Technical

Spread	120mm
Length	100mm
Spread used Internal	70-180mm
Hexagon Drive (Male)	17mm
Max Load	2.5t
Max Torque	35 Nm
Weight	1.42kg
