• KUKKO Series 20-2+S Universal 2-Jaw Puller with Sliding Parallel Narrow Quick Adjusting Jaws 160mm
  • KUKKO Series 20-2+S Universal 2-Jaw Puller with Sliding Parallel Narrow Quick Adjusting Jaws 160mm
1 2

SKU: K-20-2+S-KUK

KUKKO Series 20-2+S Universal 2-Jaw Puller with Sliding Parallel Narrow Quick Adjusting Jaws 160mm

KUKKO Series 20-2+S Universal 2-Jaw Puller with Sliding Parallel Narrow Quick Adjusting Jaws 160mm
CHF 434.00 ex VAT
CHF 434.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 345.24
19+ CHF 325.84
29+ CHF 321.97
39+ CHF 318.09
49+ CHF 314.21
74+ CHF 310.33
99+ CHF 290.93
199+ CHF 287.05
249+ CHF 283.17
499+ CHF 279.30
999+ CHF 271.54
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

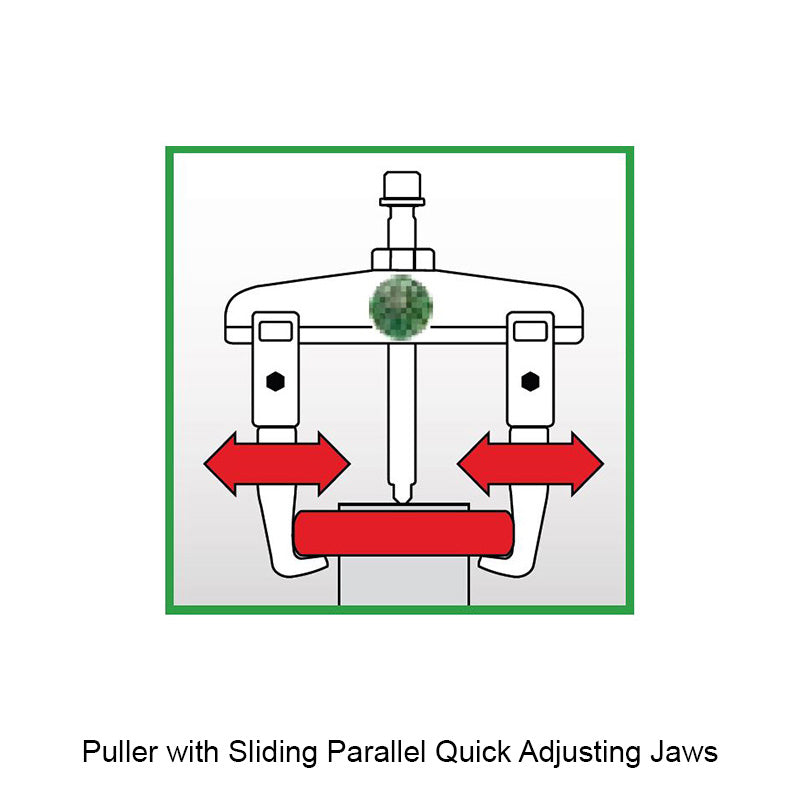

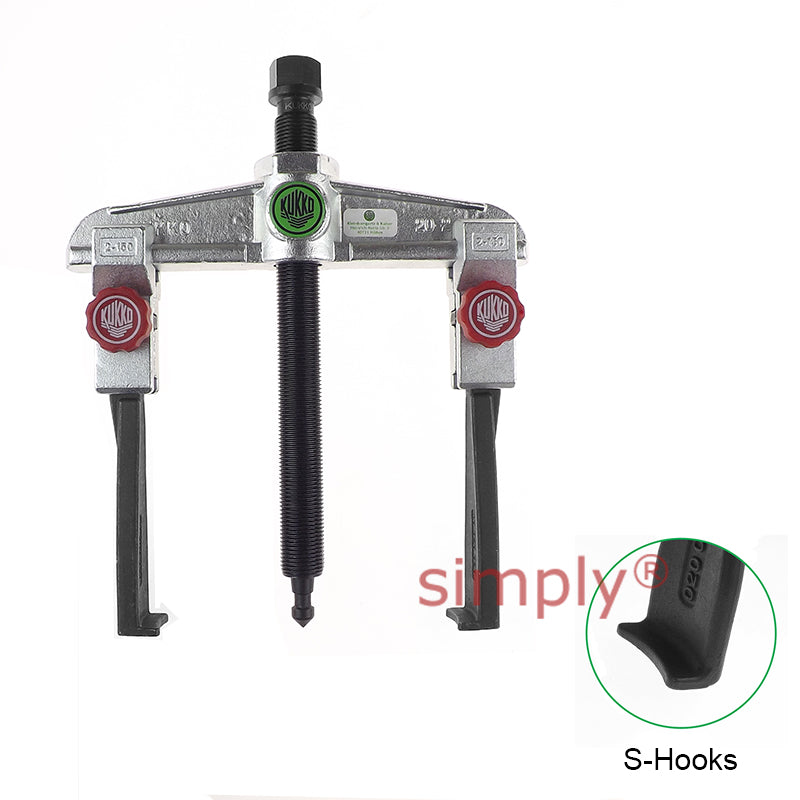

KUKKO Series 20 Universal 2-Jaw Puller with Sliding Parallel Narrow Quick Adjusting Jaws:

  • Thin pulling hook with quick adjusting capability quick adjust.
  • Parallel pulling hooks in every position, even with full load.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip.
  • Mechanical pressure screw.

    • Benefits:
  • The thin pulling hooks are suitable for narrow, difficult-to-access locations.
  • A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.
  • Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
  • Turning the pulling hooks enables them to be used both internally and externally.
  • Suitable for pulling asymmetric workpieces.
    • Brand / Quality:
    KUKKO - High Quality
    Width:
    160mm
    Length:
    150mm
    Technical
    Spread 160mm
    Length 150mm
    Spread used Internal 100-220mm
    Hexagon Drive (Male) 22mm
    Max Load 5t
    Max Torque 120 Nm
    Weight 3.04kg
