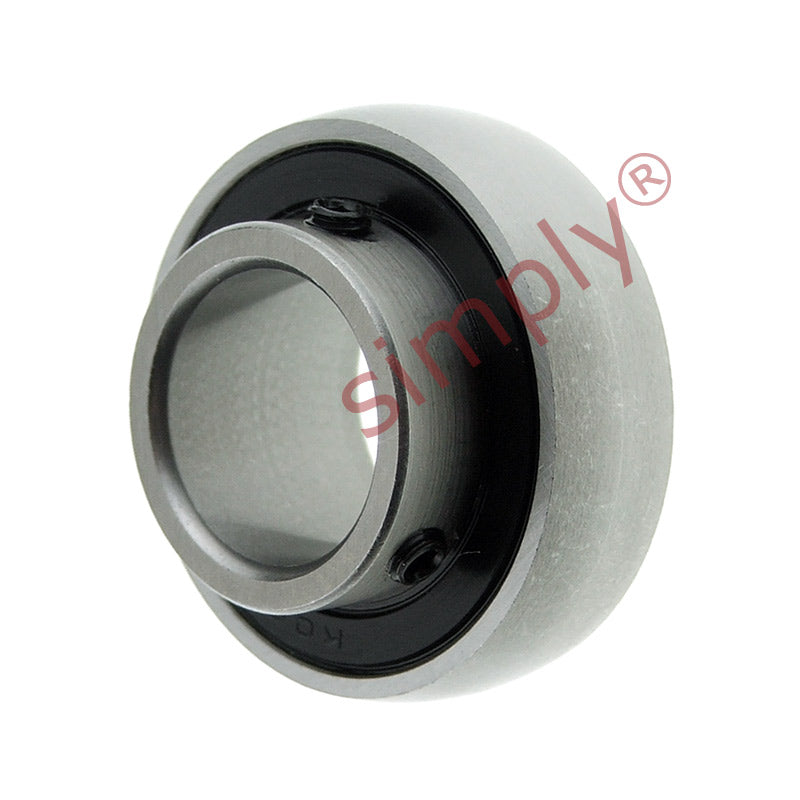

K000 Metric Grub Screw Type Bearing Insert with 10mm Bore 26mm Outside Dia
K000 Metric Grub Screw Type Bearing Insert with 10mm Bore 26mm Outside Dia
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
In stock
Price Break
3+
CHF 7.50
4+
CHF 7.08
9+
CHF 6.99
19+
CHF 6.91
49+
CHF 6.82
99+
CHF 6.74
499+
CHF 6.32
999+
CHF 6.23
1999+
CHF 6.15
2999+
CHF 6.07
4999+
CHF 5.90
Description
Description
|
Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 26mm
- Style:
- K
Technical
Technical
| Inside Diameter d | 10mm |
|---|---|
| Outside Diameter D | 26mm |
| Bi | 14mm |
| Be | 8mm |
| r | 0.5mm |
| n | 4mm |
| G | 3mm |
| W | 14.75mm |
| Grub screw | M3x0.35 |
| Dynamic load | 4606N ~ 469.681 kgf |
| Static load | 1906N ~ 194.358 kgf |
| Weight | 0.02 kg |
