SKU: K110X117X24-NTN

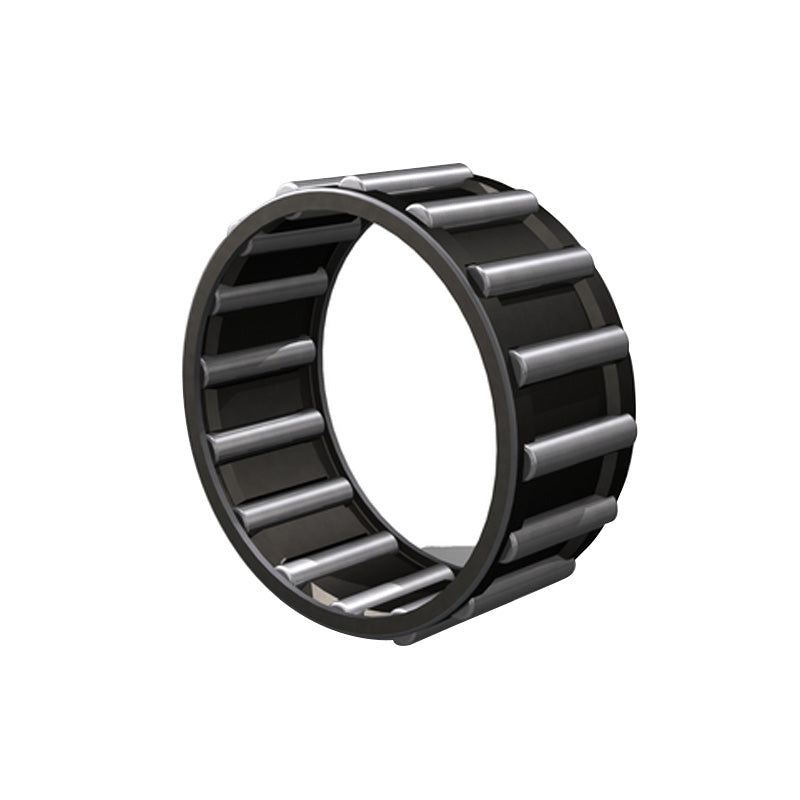

NTN K110X117X24 Needle Roller and Cage Assembly 110x117x24mm - Allow 2-3 Days
NTN K110X117X24 Needle Roller and Cage Assembly 110x117x24mm - Allow 2-3 Days
Regular price
CHF 62.00
ex VAT
Regular price
Sale price
CHF 62.00
ex VAT
In stock
Price Break
3+
CHF 54.85
4+
CHF 52.63
9+
CHF 51.52
19+
CHF 49.86
49+
CHF 48.75
99+
CHF 45.98
499+
CHF 38.78
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
Needle Roller and Cage Assemblies: A ready-to-mount, self-contained bearing component designed for compact and efficient performance. These assemblies provide high load capacity and stiffness while requiring minimal radial space, as the shaft and housing can act as raceways. Their precise design ensures smooth operation and reliable running accuracy.
Benefits: Cost-effective, minimal radial space requirements, high running accuracy.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 117mm
- Width:
- 24mm
Technical
Technical
| Fw - Inside diameter | 110mm |
|---|---|
| Ew - Outside diameter | 117mm |
| Bc - Cage width | 24mm |
| Cr - Dynamic load rating | 54.5 kN |
| C0r - Static load rating | 149 kN |
| N - Grease lubrication limit speed | 2400 tr/min |
| N - Oil lubrication limit speed | 3600 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
