SKU: K22X26X17S-NTN

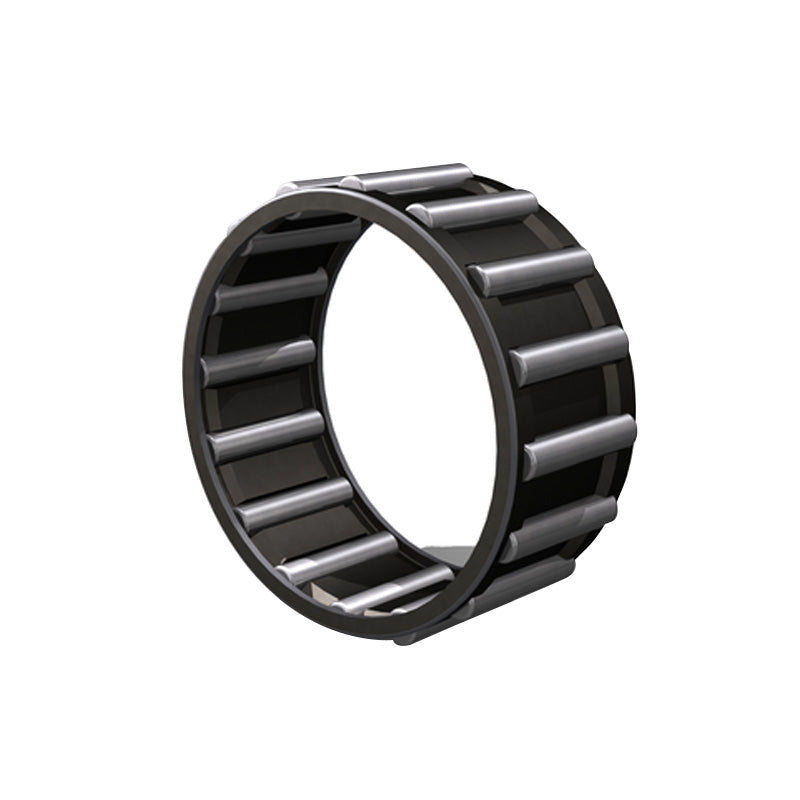

NTN K22X26X17S Needle Roller and Cage Assembly 22x26x17mm - Allow 2-3 Days
NTN K22X26X17S Needle Roller and Cage Assembly 22x26x17mm - Allow 2-3 Days
Regular price
CHF 7.00
ex VAT
Regular price
Sale price
CHF 7.00
ex VAT
In stock
Price Break
3+
CHF 5.45
4+
CHF 5.23
9+
CHF 5.12
19+
CHF 4.96
49+
CHF 4.85
99+
CHF 4.57
499+
CHF 3.86
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
Needle Roller and Cage Assemblies: A ready-to-mount, self-contained bearing component designed for compact and efficient performance. These assemblies provide high load capacity and stiffness while requiring minimal radial space, as the shaft and housing can act as raceways. Their precise design ensures smooth operation and reliable running accuracy.
Benefits: Cost-effective, minimal radial space requirements, high running accuracy.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 26mm
- Width:
- 17mm
Technical
Technical
| Fw - Inside diameter | 22mm |
|---|---|
| Ew - Outside diameter | 26mm |
| Bc - Cage width | 17mm |
| Cr - Dynamic load rating | 13.5 kN |
| C0r - Static load rating | 21.6 kN |
| N - Grease lubrication limit speed | 12000 tr/min |
| N - Oil lubrication limit speed | 18000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
