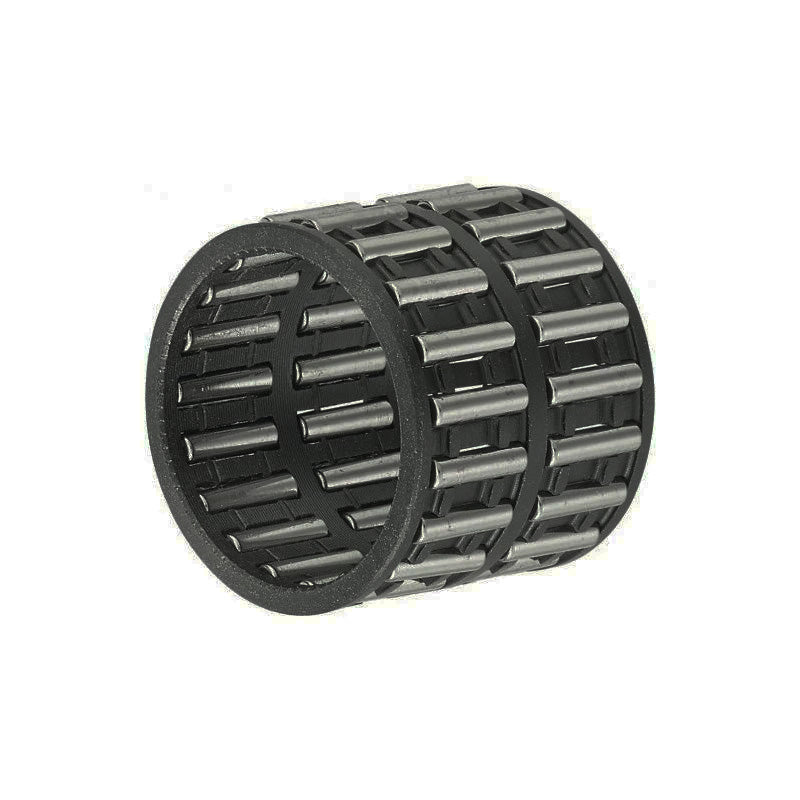

NTN K35X40X30ZWS Double Row Needle Roller and Cage Assembly 35x40x30mm - Allow 2-3 Days
NTN K35X40X30ZWS Double Row Needle Roller and Cage Assembly 35x40x30mm - Allow 2-3 Days
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
In stock
Price Break
3+
CHF 26.32
4+
CHF 25.26
9+
CHF 24.73
19+
CHF 23.93
49+
CHF 23.40
99+
CHF 22.07
499+
CHF 18.61
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
Needle Roller and Cage Assemblies: A ready-to-mount, self-contained bearing component designed for compact and efficient performance. These assemblies provide high load capacity and stiffness while requiring minimal radial space, as the shaft and housing can act as raceways. Their precise design ensures smooth operation and reliable running accuracy.
Benefits: Cost-effective, minimal radial space requirements, high running accuracy.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 40mm
- Width:
- 30mm
Technical
Technical
| Fw - Inside diameter | 35mm |
|---|---|
| Ew - Outside diameter | 40mm |
| Bc - Cage width | 30mm |
| Cr - Dynamic load rating | 26.1 kN |
| C0r - Static load rating | 50 kN |
| N - Grease lubrication limit speed | 7500 tr/min |
| N - Oil lubrication limit speed | 11000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
