SKU: K3x5x7TN-EU

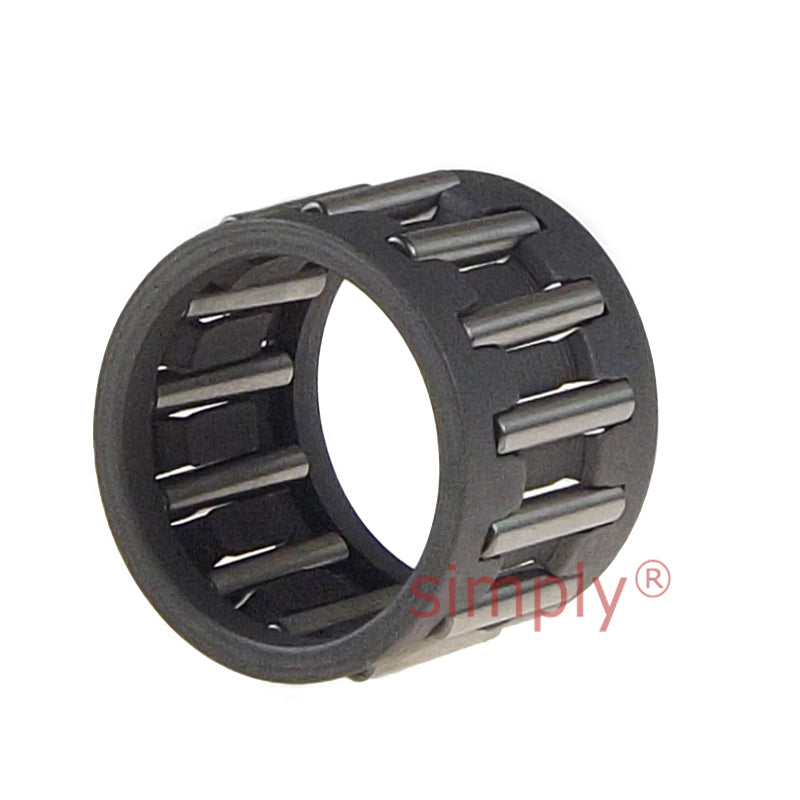

K3x5x7TN Budget Needle Roller Cage Assembly 3x5x7mm
K3x5x7TN Budget Needle Roller Cage Assembly 3x5x7mm
Regular price
CHF 3.00
ex VAT
Regular price
Sale price
CHF 3.00
ex VAT
In stock
Price Break
10+
CHF 2.28
19+
CHF 2.15
29+
CHF 2.13
39+
CHF 2.10
49+
CHF 2.07
74+
CHF 2.05
99+
CHF 1.92
199+
CHF 1.89
249+
CHF 1.87
499+
CHF 1.84
999+
CHF 1.79
Description
Description
|
Budget Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 3mm
- Outside Diameter:
- 5mm
- Width:
- 7mm
Technical
Technical
| Fw | 3mm |
|---|---|
| Ew | 5mm |
| U | 7mm |
| Dynamic load C | 1510 N |
| Static load Co | 1340 N |
| Fatigue load limit Pu | 134 N |
| Speed in grease | 28000 rpm |
| Speed in oil | 40000 rpm |
| Weight | 0.3 g |
