SKU: K40x48x17-MB

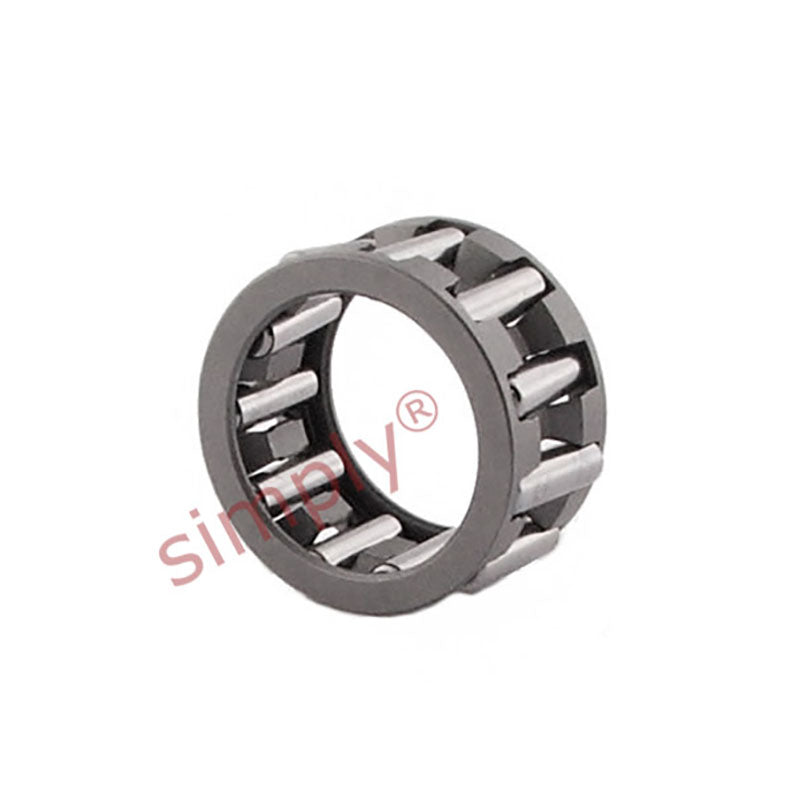

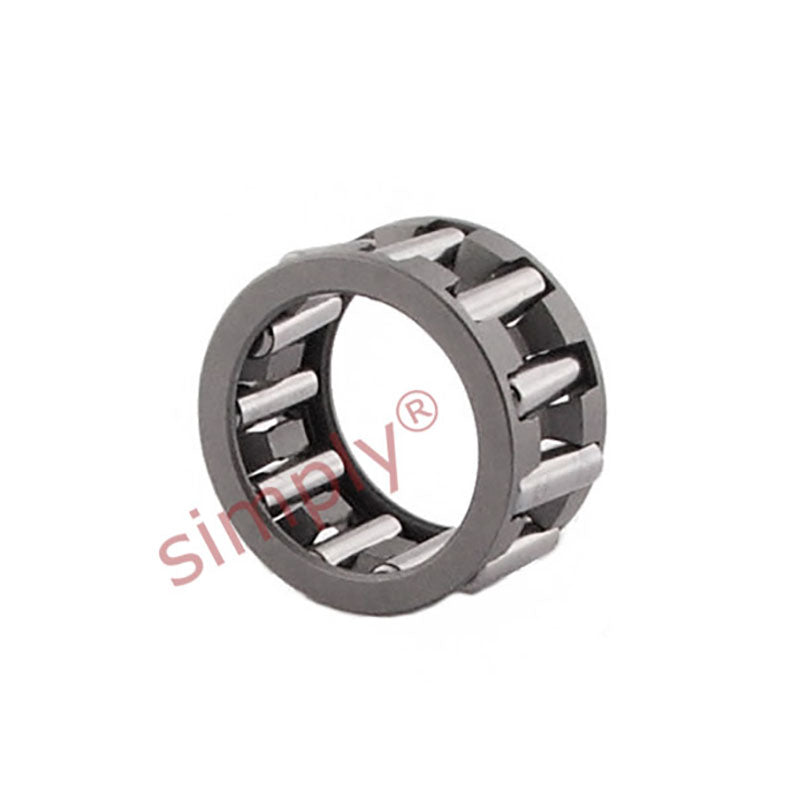

Major Brand K40x48x17 Needle Roller Cage Assembly 40x48x17mm
Major Brand K40x48x17 Needle Roller Cage Assembly 40x48x17mm
Regular price
CHF 13.00
ex VAT
Regular price
Sale price
CHF 13.00
ex VAT
Equivalent to: KT404817
In stock
Price Break
10+
CHF 10.08
19+
CHF 9.52
29+
CHF 9.40
39+
CHF 9.29
49+
CHF 9.18
74+
CHF 9.06
99+
CHF 8.50
199+
CHF 8.38
249+
CHF 8.27
499+
CHF 8.16
999+
CHF 7.93
Description
Description
|
Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
Equivalent: KT404817
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 48mm
- Width:
- 17mm
Technical
Technical
| Fw | 40mm |
|---|---|
| Ew | 48mm |
| U | 17mm |
| Dynamic load | 34700 N |
| Static load | 58500 N |
| Fatigue load limit Pu | 7350 N |
| Speed in grease | 7000 rpm |
| Speed in oil | 10000 rpm |
| Weight | 49 g |
