SKU: K47x53x25-EU

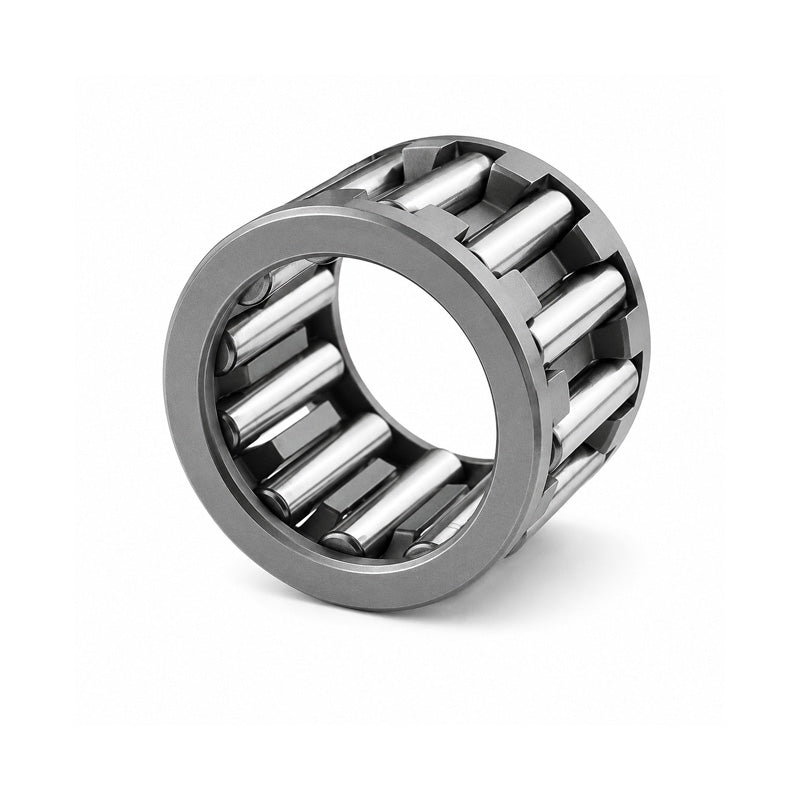

K47x53x25 Budget Needle Roller Cage Assembly 47x53x25mm
K47x53x25 Budget Needle Roller Cage Assembly 47x53x25mm
Regular price
CHF 34.00
ex VAT
Regular price
Sale price
CHF 34.00
ex VAT
In stock
Price Break
10+
CHF 26.68
19+
CHF 25.18
29+
CHF 24.88
39+
CHF 24.58
49+
CHF 24.29
74+
CHF 23.99
99+
CHF 22.49
199+
CHF 22.19
249+
CHF 21.89
499+
CHF 21.59
999+
CHF 20.99
Description
Description
|
Budget Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 47mm
- Outside Diameter:
- 53mm
- Width:
- 25mm
Technical
Technical
| Fw | 47mm |
|---|---|
| Ew | 53mm |
| U | 25mm |
| Dynamic load C | 36900 N |
| Static load Co | 81500 N |
| Fatigue load limit Pu | 10200 N |
| Speed in grease | 6000 rpm |
| Speed in oil | 8500 rpm |
| Weight | 51 g |
