SKU: K87410-NTN
NTN K87410 Needle Roller Cage Only 50x110x8mm - Allow 2-3 Days
NTN K87410 Needle Roller Cage Only 50x110x8mm - Allow 2-3 Days
Regular price
CHF 149.00
ex VAT
Regular price
Sale price
CHF 149.00
ex VAT
In stock
Price Break
3+
CHF 131.61
4+
CHF 126.29
9+
CHF 123.63
19+
CHF 119.65
49+
CHF 116.99
99+
CHF 110.34
499+
CHF 93.06
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 8mm
Technical
Technical

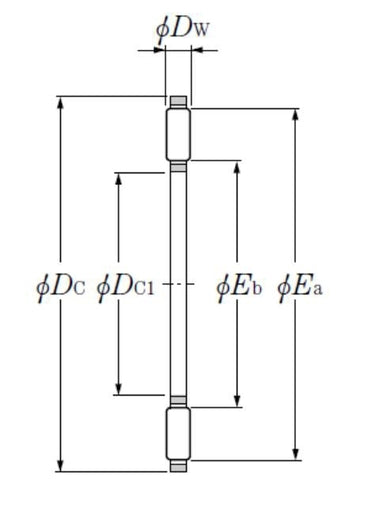

| Dc1 - Inside diameter | 50mm |
|---|---|
| Dc - Outside diameter | 110mm |
| Dw - Roller Width | 8mm |
| WS inner ring reference | WS87410 |
| GS outer ring reference | GS87410 |
| Ea - Rollers reference outer diameter | 106mm |
| Eb - Rollers reference inner diameter | 56mm |
| Ca - Dynamic axial load rating | 168 kN |
| C0a - Static axial load rating | 680 kN |
| Grease lubrication limit speed | 730 tr/min |
| Oil lubrication limit speed | 2900 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
