SKU: KB12-INA

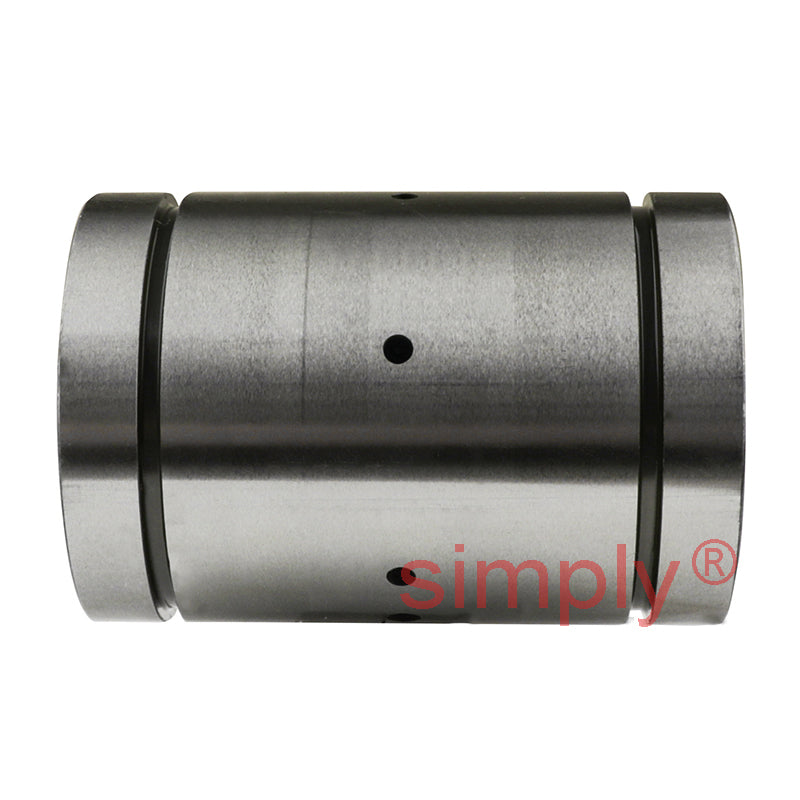

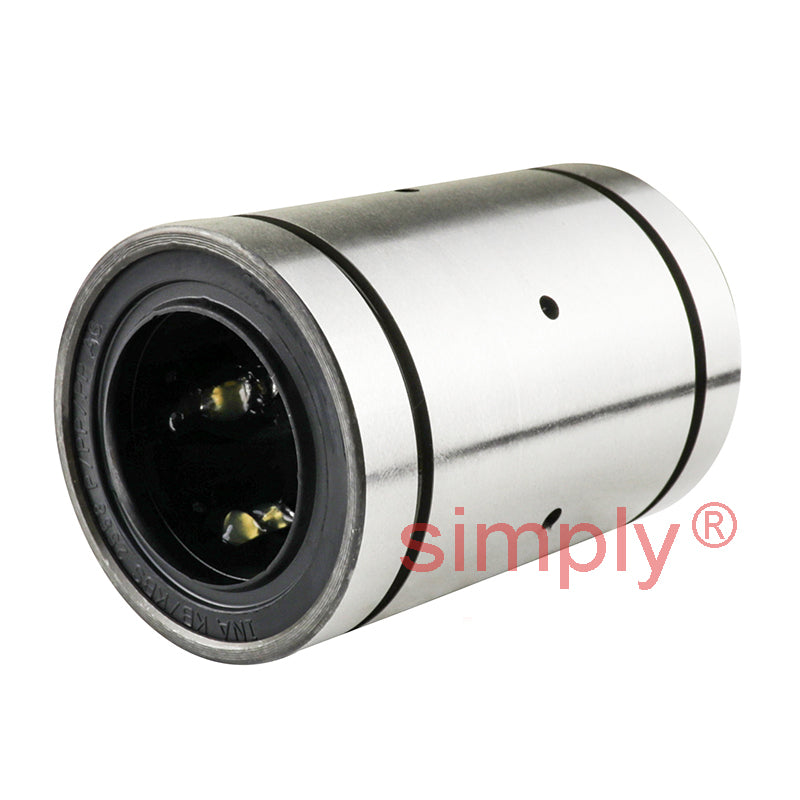

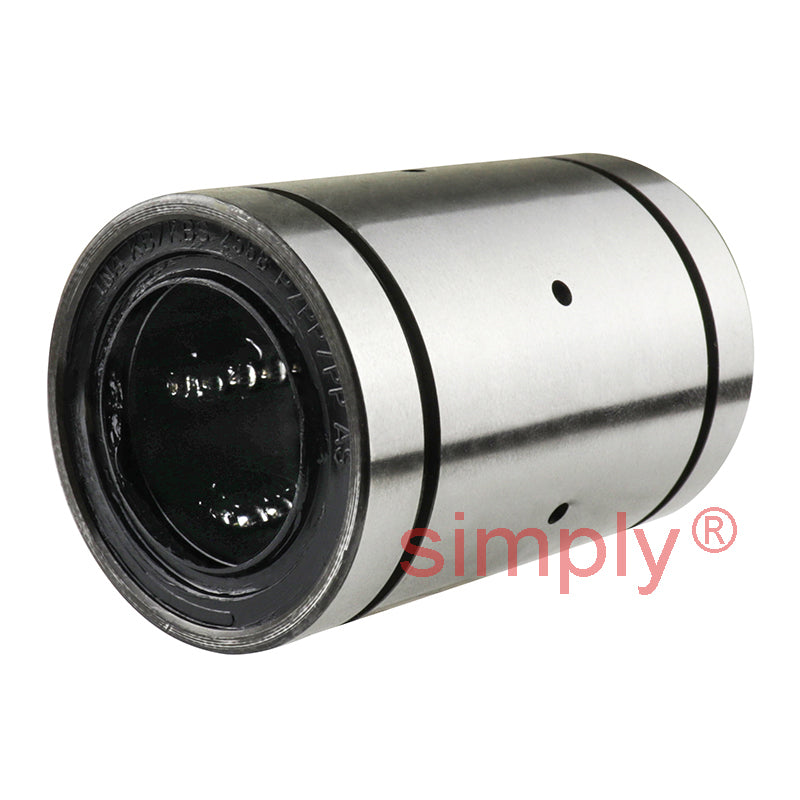

INA KB12 Closed Linear Ball Bushing with Gap Seals 12x22x32mm
INA KB12 Closed Linear Ball Bushing with Gap Seals 12x22x32mm
Regular price
CHF 46.00
ex VAT
Regular price
Sale price
CHF 46.00
ex VAT
In stock
Price Break
3+
CHF 36.53
5+
CHF 34.48
10+
CHF 34.07
15+
CHF 33.66
20+
CHF 33.25
30+
CHF 32.84
40+
CHF 30.79
50+
CHF 30.38
60+
CHF 29.97
75+
CHF 29.56
100+
CHF 28.74
Description
Description
|
INA KB Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 22mm
- Width:
- 32mm
Technical
Technical
| Fw | 12mm |
|---|---|
| D | 22mm |
| L | 32mm |
| Numer of rows of balls | 5 |
| BL2 | 1.3mm |
| DN | 21mm |
| L2 | 22.6mm |
| Mass | 0.04 kg |
| Basic dynamic load rating C min | 540 N |
| Basic static load rating C0 min | 385 N |
| Basic dynamic load rating C max | 640 N |
| Basic static load rating C0 max | 570 N |
