SKU: KB16-PP-INA

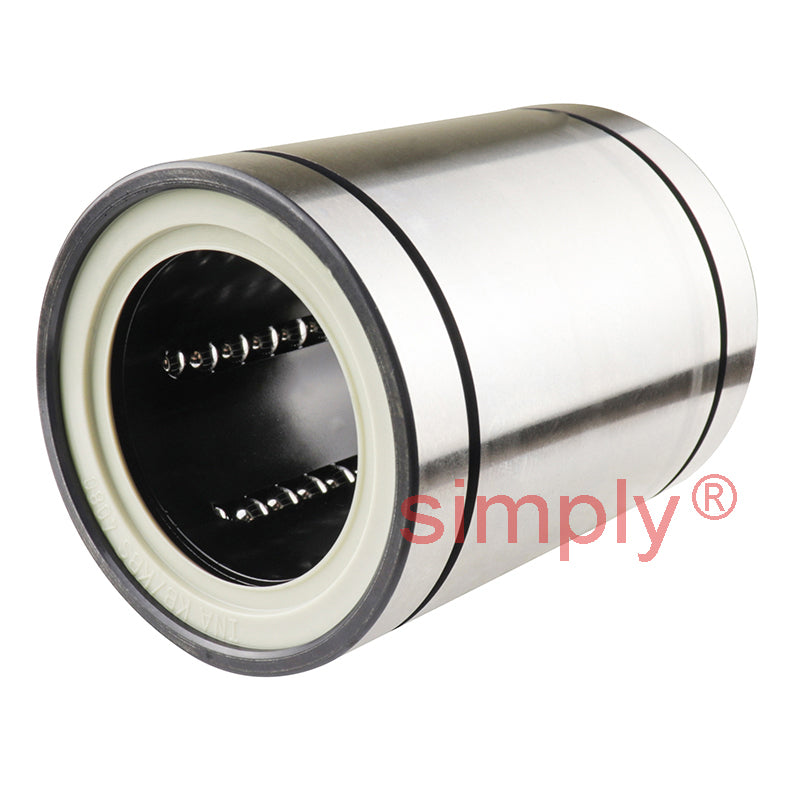

INA KB16PP Closed Linear Ball Bushing with Contact Seals 16x26x36mm
INA KB16PP Closed Linear Ball Bushing with Contact Seals 16x26x36mm
Regular price
CHF 62.35
ex VAT
Regular price
Sale price
CHF 62.35
ex VAT
In stock
Price Break
10+
CHF 55.49
19+
CHF 52.37
29+
CHF 51.75
39+
CHF 51.13
49+
CHF 50.50
74+
CHF 49.88
99+
CHF 46.76
199+
CHF 46.14
249+
CHF 45.52
499+
CHF 44.89
999+
CHF 43.65
Couldn't load pickup availability
Description
Description
|
INA KB..-PP Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 26mm
- Width:
- 36mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 26mm |
| L | 36mm |
| Numer of rows of balls | 5 |
| BL2 | 1.3mm |
| DN | 24.9mm |
| L2 | 24.6mm |
| Mass | 0.05 kg |
| Basic dynamic load rating C min | 710 N |
| Basic static load rating C0 min | 530 N |
| Basic dynamic load rating C max | 840 N |
| Basic static load rating C0 max | 780 N |
