SKU: KB30-PP-INA

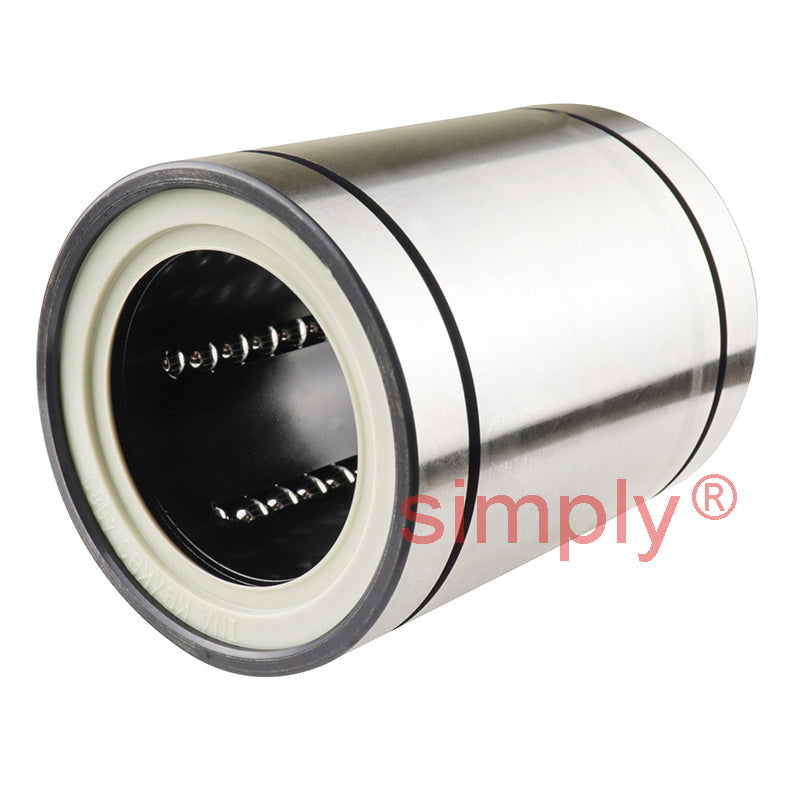

INA KB30PP Closed Linear Ball Bushing with Contact Seals 30x47x68mm
INA KB30PP Closed Linear Ball Bushing with Contact Seals 30x47x68mm
Regular price
CHF 105.00
ex VAT
Regular price
Sale price
CHF 105.00
ex VAT
In stock
Price Break
3+
CHF 83.46
5+
CHF 78.77
10+
CHF 77.83
15+
CHF 76.89
20+
CHF 75.95
30+
CHF 75.02
40+
CHF 70.33
50+
CHF 69.39
60+
CHF 68.45
75+
CHF 67.51
100+
CHF 65.64
Description
Description
|
INA KB..-PP Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 68mm
Technical
Technical
| Fw | 30mm |
|---|---|
| D | 47mm |
| L | 68mm |
| Numer of rows of balls | 6 |
| BL2 | 1.85mm |
| DN | 44.5mm |
| L2 | 51.7mm |
| Mass | 0.3 kg |
| Basic dynamic load rating C min | 3600 N |
| Basic static load rating C0 min | 2850 N |
| Basic dynamic load rating C max | 3800 N |
| Basic static load rating C0 max | 3600 N |
