SKU: KB40-INA

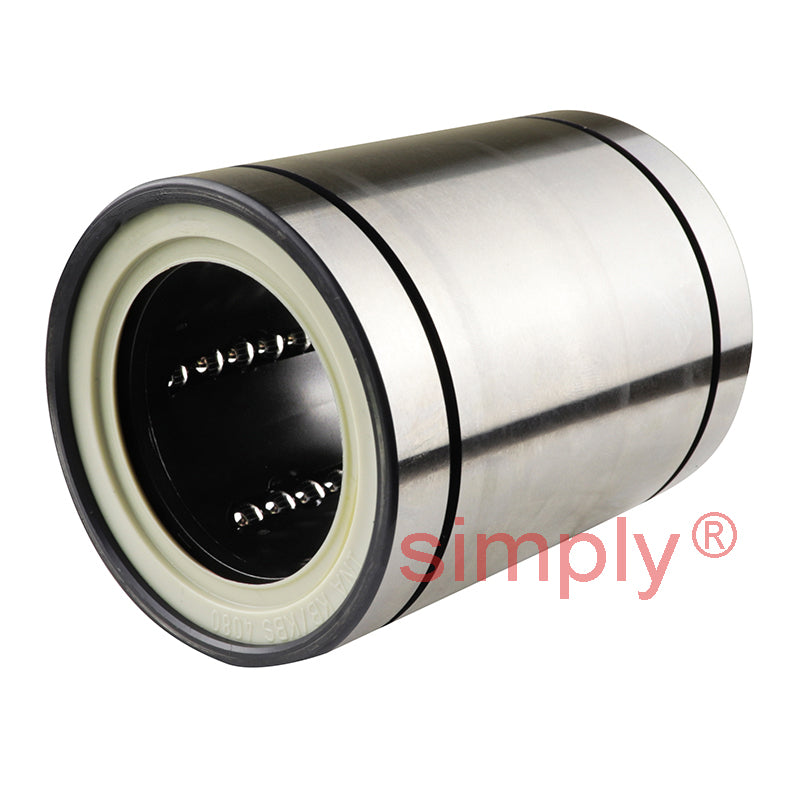

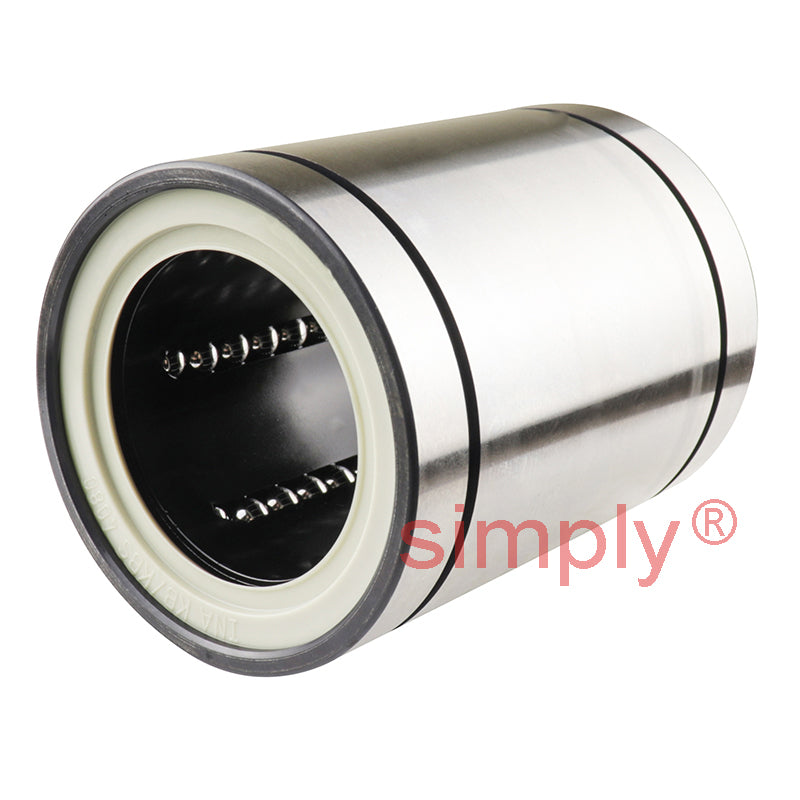

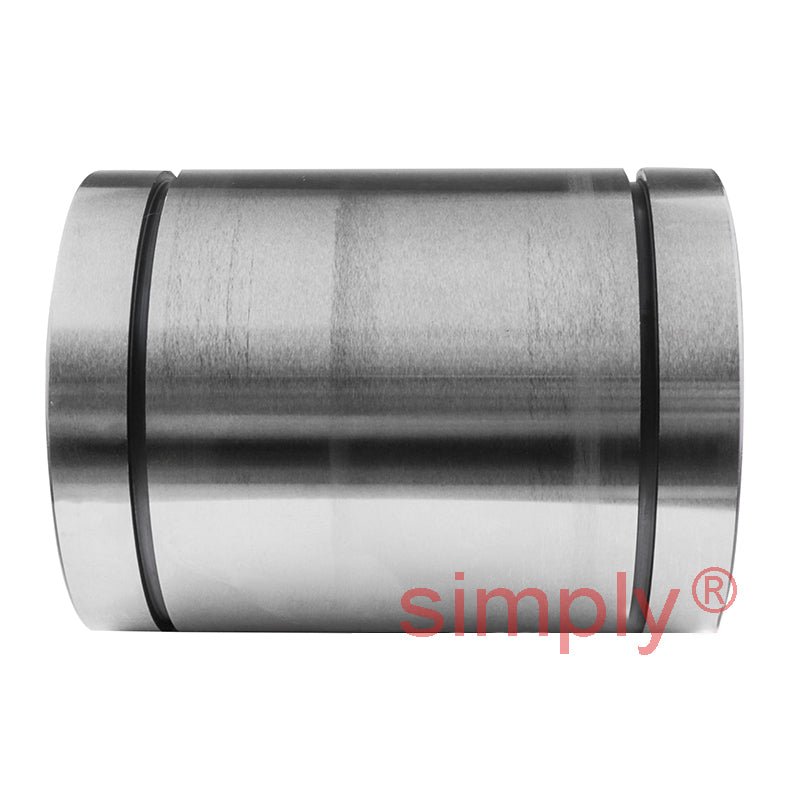

INA KB40 Closed Linear Ball Bushing with Gap Seals 40x62x80mm
INA KB40 Closed Linear Ball Bushing with Gap Seals 40x62x80mm
Regular price
CHF 128.00
ex VAT
Regular price
Sale price
CHF 128.00
ex VAT
In stock
Price Break
3+
CHF 101.94
5+
CHF 96.21
10+
CHF 95.07
15+
CHF 93.92
20+
CHF 92.78
30+
CHF 91.63
40+
CHF 85.91
50+
CHF 84.76
60+
CHF 83.61
75+
CHF 82.47
100+
CHF 80.18
Description
Description
|
INA KB Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 80mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 62mm |
| L | 80mm |
| Numer of rows of balls | 6 |
| BL2 | 2.15mm |
| DN | 59mm |
| L2 | 60.3mm |
| Mass | 0.6 kg |
| Basic dynamic load rating C min | 6000 N |
| Basic static load rating C0 min | 4400 N |
| Basic dynamic load rating C max | 6400 N |
| Basic static load rating C0 max | 5600 N |
