SKU: KB40-PP-AS-INA

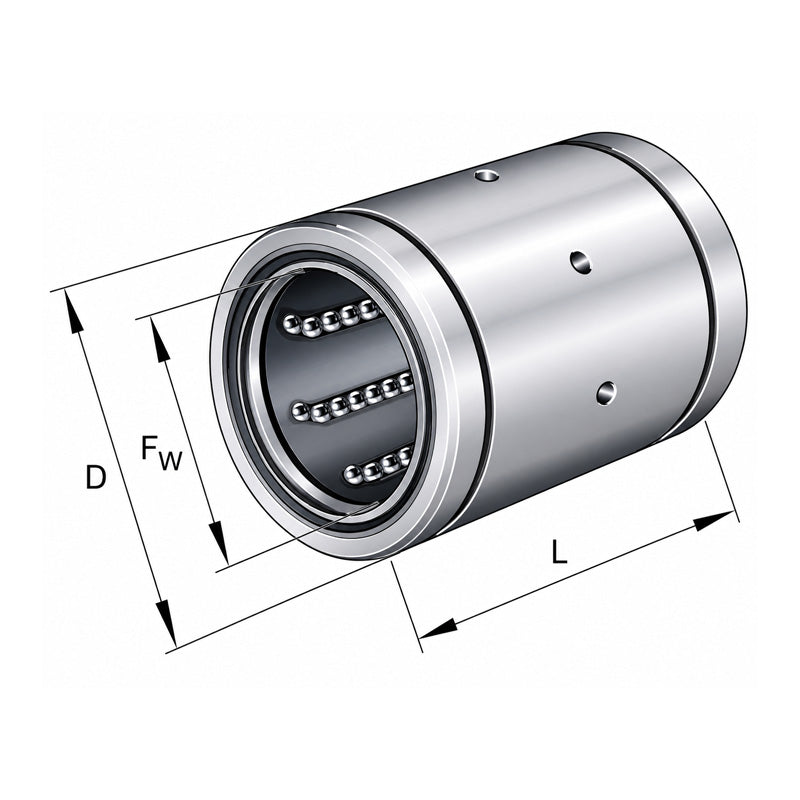

INA KB40PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 40x62x80mm
INA KB40PPAS Relubricatable Closed Linear Ball Bushing with Contact Seals 40x62x80mm
Regular price
CHF 143.82
ex VAT
Regular price
Sale price
CHF 143.82
ex VAT
In stock
Price Break
10+
CHF 128.00
19+
CHF 120.81
29+
CHF 119.37
39+
CHF 117.93
49+
CHF 116.49
74+
CHF 115.06
99+
CHF 107.87
199+
CHF 106.43
249+
CHF 104.99
499+
CHF 103.55
999+
CHF 100.67
Couldn't load pickup availability
Description
Description
|
INA KB..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KB and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings are of a closed construction and are designed for use on shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Closed construction makes this bearing suitable for use on shafts, excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 80mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 62mm |
| L | 80mm |
| Numer of rows of balls | 6 |
| BL2 | 2.15mm |
| DN | 59mm |
| L2 | 60.3mm |
| N2 | 3mm |
| Mass | 0.6 kg |
| Basic dynamic load rating C min | 6000 N |
| Basic static load rating C0 min | 4400 N |
| Basic dynamic load rating C max | 6400 N |
| Basic static load rating C0 max | 5600 N |
