SKU: KBO16-INA
INA KBO16 Linear Ball Bushing 16x26x36mm
INA KBO16 Linear Ball Bushing 16x26x36mm
Regular price
CHF 74.00
ex VAT
Regular price
Sale price
CHF 74.00
ex VAT
In stock
Price Break
3+
CHF 58.77
5+
CHF 55.47
10+
CHF 54.80
15+
CHF 54.14
20+
CHF 53.48
30+
CHF 52.82
40+
CHF 49.52
50+
CHF 48.86
60+
CHF 48.20
75+
CHF 47.54
100+
CHF 46.22
Description
Description
|
INA KBO Linear Ball Bearings: Linear ball bearings of the machined range KBO and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings have an open design with a segment cutout for supported shafts. The bearings are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 26mm
- Width:
- 36mm

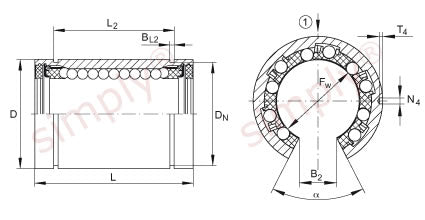

Technical
Technical
| Fw | 16mm |
|---|---|
| D | 26mm |
| L | 36mm |
| Number of rows of balls | 4 |
| B2 | 10.1mm |
| BL2 | 1.3mm |
| DN | 24.9mm |
| L2 | 24.6mm |
| N4 | 2.2mm |
| T4 | 1.2mm |
| α | 78° |
| Mass | 0.04 kg |
| Basic dynamic load rating C max | 800 N |
| Basic static load rating C0 max | 620 N |
