SKU: KBO40-PP-INA

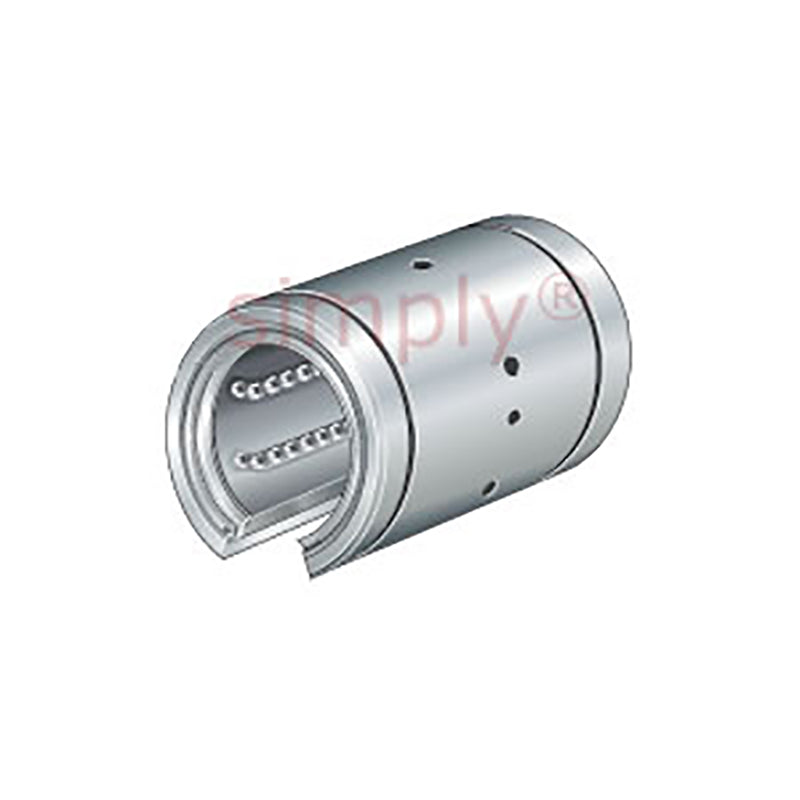

INA KBO40PP Linear Ball Bushing with Contact Seals 40x62x80mm
INA KBO40PP Linear Ball Bushing with Contact Seals 40x62x80mm
Regular price
CHF 186.00
ex VAT
Regular price
Sale price
CHF 186.00
ex VAT
In stock
Price Break
3+
CHF 147.76
5+
CHF 139.46
10+
CHF 137.80
15+
CHF 136.14
20+
CHF 134.48
30+
CHF 132.82
40+
CHF 124.52
50+
CHF 122.85
60+
CHF 121.19
75+
CHF 119.53
100+
CHF 116.21
Description
Description
|
INA KBO..-PP Linear Ball Bearings: Linear ball bearings of the machined range KBO and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. These bearings have an open design with a segment cutout for supported shafts. The bearings are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 80mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 62mm |
| L | 80mm |
| Number of rows of balls | 5 |
| B2 | 18.2mm |
| BL2 | 2.15mm |
| DN | 59mm |
| L2 | 60.3mm |
| N4 | 3mm |
| T4 | 1.5mm |
| α | 54° |
| Mass | 0.52 kg |
| Basic dynamic load rating C max | 6100 N |
| Basic static load rating C0 max | 4600 N |
