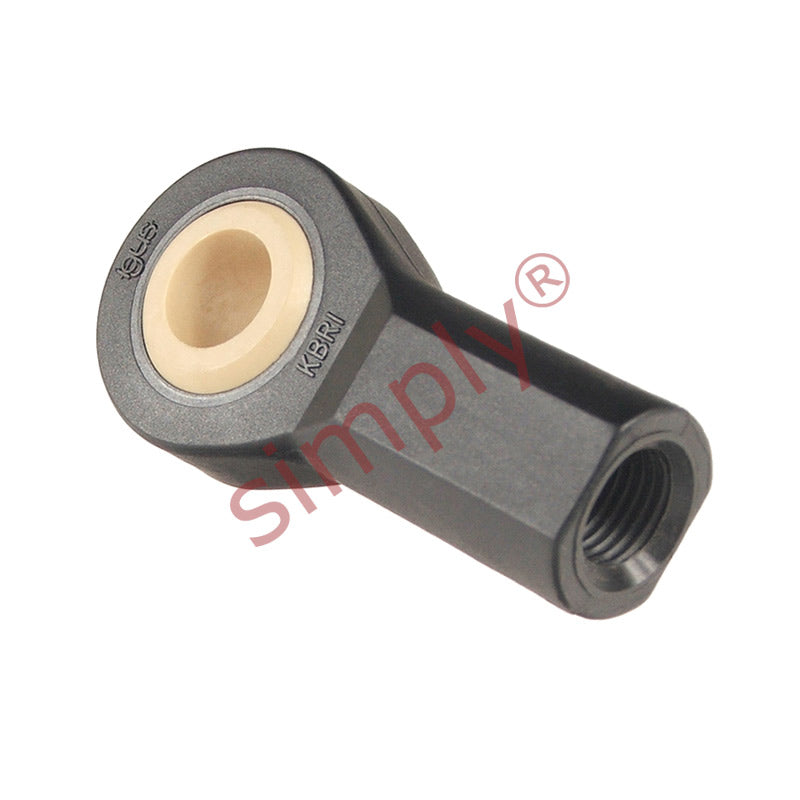

igubal KBRI03 Right Hand Female Plastic Rod End 0.187 inch Bore 10-32 Thread

IGUS igubal® KBRI imperial series right hand female thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint and have high dampening qualities. They are resistant to corrosion and chemicals.
Operating Temperature Range: -30 Deg C to + 80 Deg C long term - short term up to +120 Deg C
Materials: Ball material iglidur® W300, Housing: igumid G
Uses: They are suitable for rotary, oscillating and linear movements and are light weight.
Tolerances: They are manufactured in accordance to DIN ISO 12240
Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free

Brand / Quality:

Igus - High Quality

Thread Size:

10-32

Thread M / F:

Female

Thread Direction:

Right Hand

Inside Diameter:

4.76mm = 0.187 (3/16) inch
