SKU: KBS25-PP-AS-INA

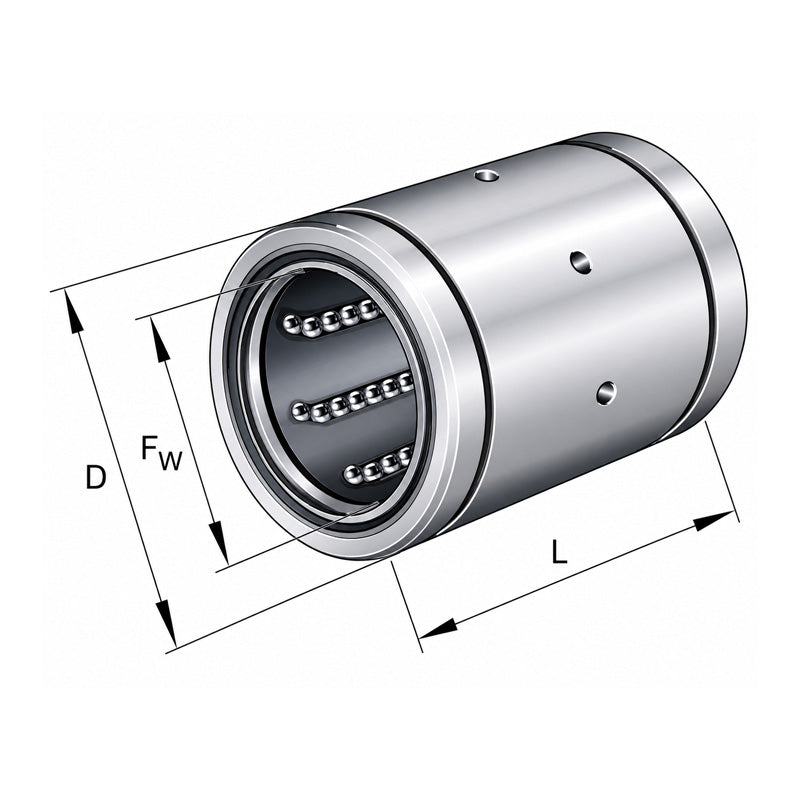

INA KBS25PPAS Relubricatable Linear Ball Bushing with Contact Seals 25x40x58mm
INA KBS25PPAS Relubricatable Linear Ball Bushing with Contact Seals 25x40x58mm
Regular price
CHF 104.00
ex VAT
Regular price
Sale price
CHF 104.00
ex VAT
In stock
Price Break
3+
CHF 82.64
5+
CHF 77.99
10+
CHF 77.07
15+
CHF 76.14
20+
CHF 75.21
30+
CHF 74.28
40+
CHF 69.64
50+
CHF 68.71
60+
CHF 67.78
75+
CHF 66.85
100+
CHF 65.00
Description
Description
|
INA KBS..-PP-AS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. The AS suffix signifies a bearing and unit with a relubrication facility. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 40mm
- Width:
- 58mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 40mm |
| L | 58mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 1.85mm |
| DN | 37.5mm |
| L2 | 43.7mm |
| Mass | 0.19 kg |
| Basic dynamic load rating C min | 2800 N |
| Basic static load rating C0 min | 2220 N |
| Basic dynamic load rating C max | 2950 N |
| Basic static load rating C0 max | 2850 N |
