SKU: KBS40-INA
INA KBS40 Linear Ball Bushing 40x62x80mm
INA KBS40 Linear Ball Bushing 40x62x80mm
Regular price
CHF 136.41
ex VAT
Regular price
Sale price
CHF 136.41
ex VAT
In stock
Price Break
10+
CHF 121.40
19+
CHF 114.58
29+
CHF 113.22
39+
CHF 111.86
49+
CHF 110.49
74+
CHF 109.13
99+
CHF 102.31
199+
CHF 100.94
249+
CHF 99.58
499+
CHF 98.22
999+
CHF 95.49
Couldn't load pickup availability
Description
Description
|
INA KBS Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with gap seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 80mm
Technical
Technical

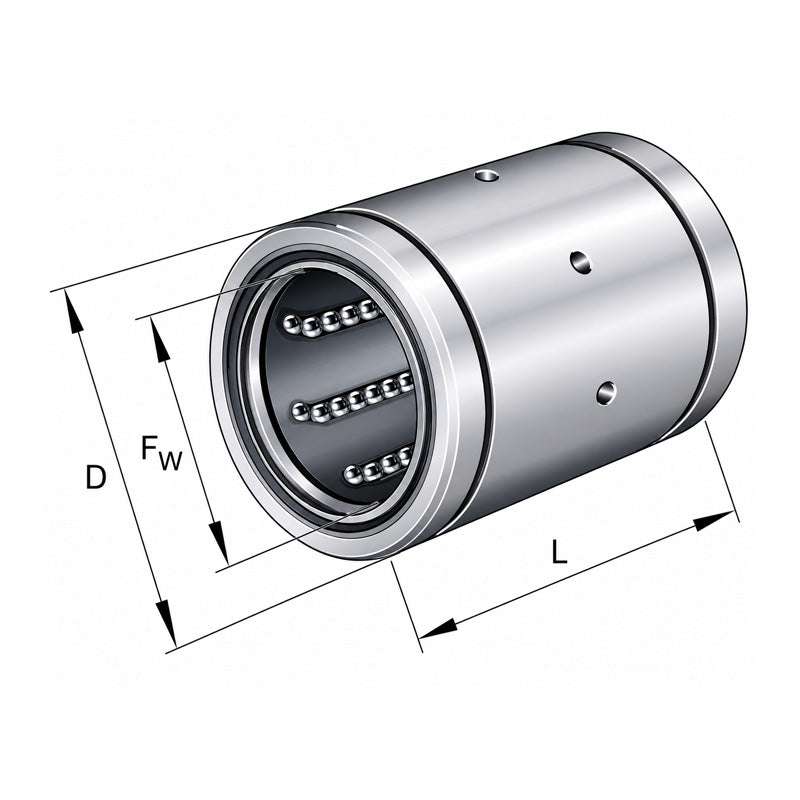

| Fw | 40mm |
|---|---|
| D | 62mm |
| L | 80mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 2.15mm |
| DN | 59mm |
| L2 | 60.3mm |
| Mass | 0.6 kg |
| Basic dynamic load rating C min | 6000 N |
| Basic static load rating C0 min | 4400 N |
| Basic dynamic load rating C max | 6400 N |
| Basic static load rating C0 max | 5600 N |
