SKU: KBS40-PP-INA

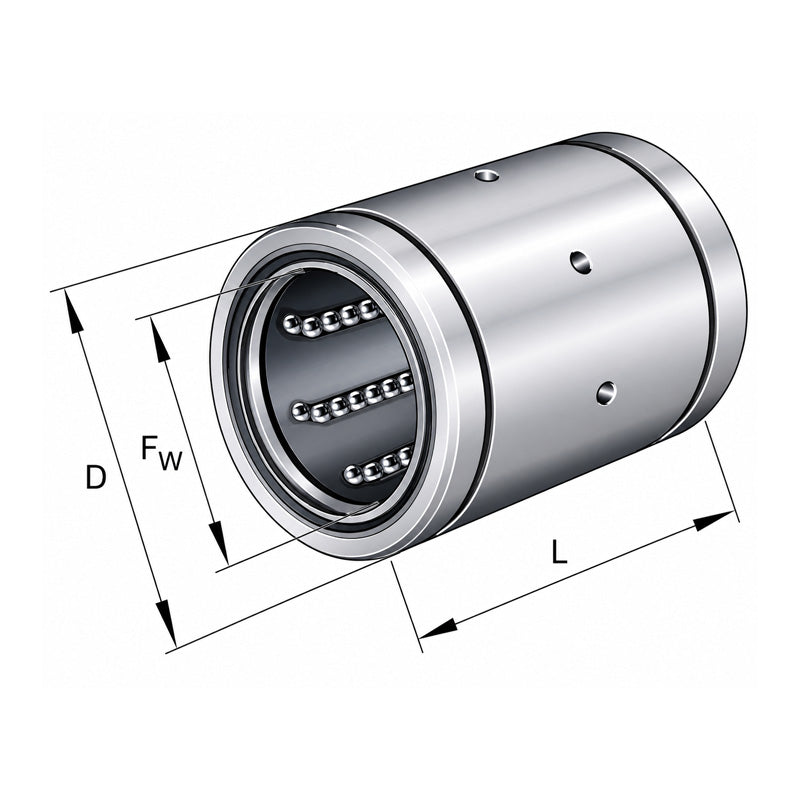

INA KBS40PP Linear Ball Bushing with Contact Seals 40x62x80mm
INA KBS40PP Linear Ball Bushing with Contact Seals 40x62x80mm
Regular price
CHF 144.67
ex VAT
Regular price
Sale price
CHF 144.67
ex VAT
In stock
Price Break
10+
CHF 128.76
19+
CHF 121.52
29+
CHF 120.08
39+
CHF 118.63
49+
CHF 117.18
74+
CHF 115.74
99+
CHF 108.50
199+
CHF 107.06
249+
CHF 105.61
499+
CHF 104.16
999+
CHF 101.27
Couldn't load pickup availability
Description
Description
|
INA KBS..-PP Linear Ball Bearings: Linear ball bearings of the machined range KBS and the corresponding linear ball bearing and housing units have high precision and are particularly rigid. The bearing has a slot for adjustment of the radial clearance. They are sealed on both sides with contact seals. They have an initial greasing and can be relubricated via a lubrication nipple in the housing. Bearings and housings of this product range can be used at operating temperatures from -30 deg C to +80 deg C. Benefits: Excellent running characteristics, can be relubricated |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 80mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 62mm |
| L | 80mm |
| Numer of rows of balls | 6 |
| B3 | 1mm |
| BL2 | 2.15mm |
| DN | 59mm |
| L2 | 60.3mm |
| Mass | 0.6 kg |
| Basic dynamic load rating C min | 6000 N |
| Basic static load rating C0 min | 4400 N |
| Basic dynamic load rating C max | 6400 N |
| Basic static load rating C0 max | 5600 N |
