SKU: KDPAU052

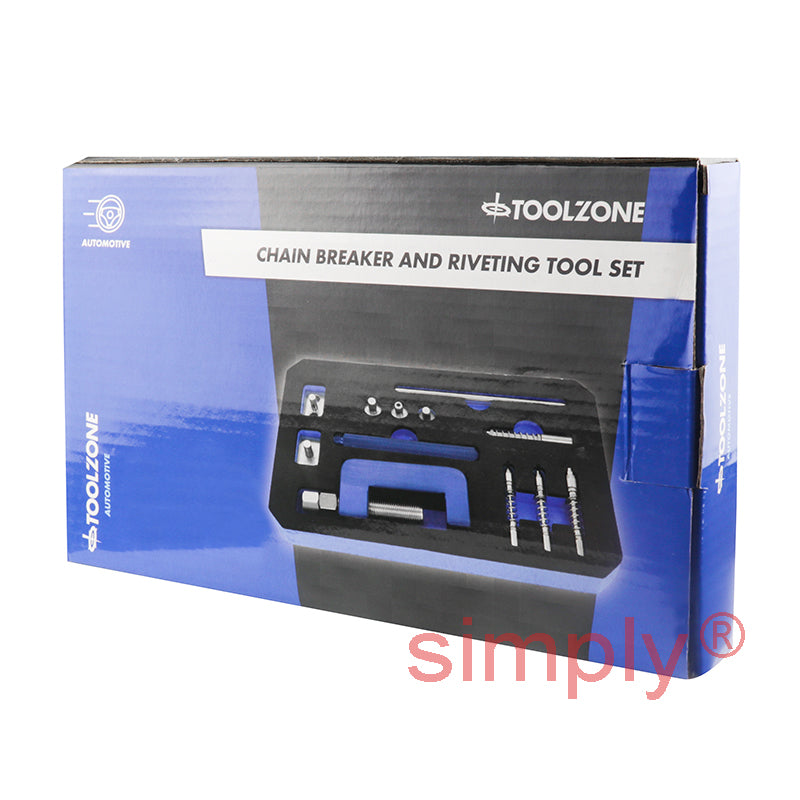

Chain Breaker and Riveting Tool Set
Chain Breaker and Riveting Tool Set
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
In stock
Price Break
10+
CHF 19.29
19+
CHF 18.21
29+
CHF 17.99
39+
CHF 17.78
49+
CHF 17.56
74+
CHF 17.34
99+
CHF 16.26
199+
CHF 16.04
249+
CHF 15.82
499+
CHF 15.61
999+
CHF 15.17
Description
Description

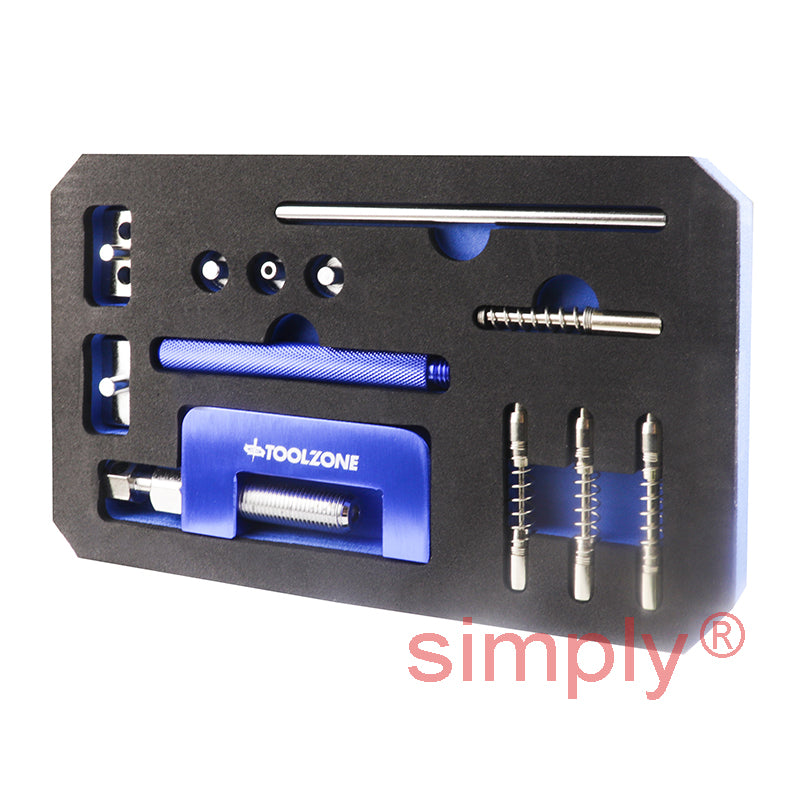

For breaking and joining most drive chain. Set Includes; Main Frame, Rear Handle, Alignment Bolt, Push Bolt, Lower and Top Press Plates, Slide Lever, Breaker Pins, Riveter Pin, Lower Pin Guide, Small and Large Anvil. Breaks and rivets drive chain from 3 to 5mm (1/2 Inch Pitch Chain Maximum Break)
- Brand / Quality:
- Toolzone - Economy Quality
Technical
Technical
| Package Dimensions | 23x14x3mm |
|---|---|

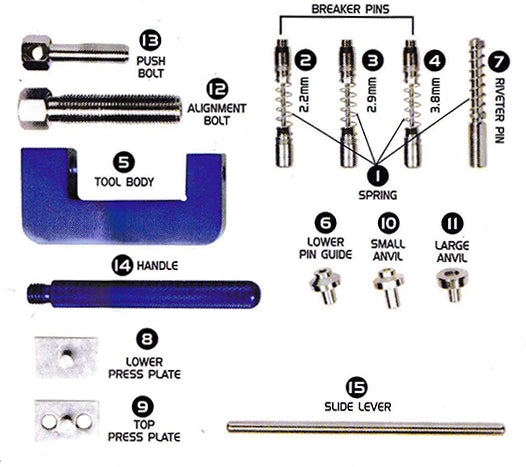

| --- | Contents |
| 1 | Spring for use with all pins and riveter |
| 2 | 2.2mm breaker pin for use with cam chains |
| 3 | 2.9mm breaker pin for use with 420 size chains |
| 4 | 3.8mm breaker pin for use with 428, 520, 525, 530 (50), 532, 630 size chains |
| 5 | Tool body |
| 6 | Lower pin guide for use with 2.2mm pin |
| 7 | Riveter pin |
| 8 | Lower press plate- Slotted, for use on 520, 525, 530 (50) size chains |
| 9 | Top press plate - 2 holes, for use on 520, 525, 530 (50) size chains |
| 10 | Small anvil for use while riveting link on cam chain |
| 11 | Large anvil for use while riveting link on 520, 525, 530 (50), 532, 630 size chains |
| 12 | Alignment bolt |
| 13 | Push-bolt |
| 14 | Handle |
| 15 | Slide lever |
