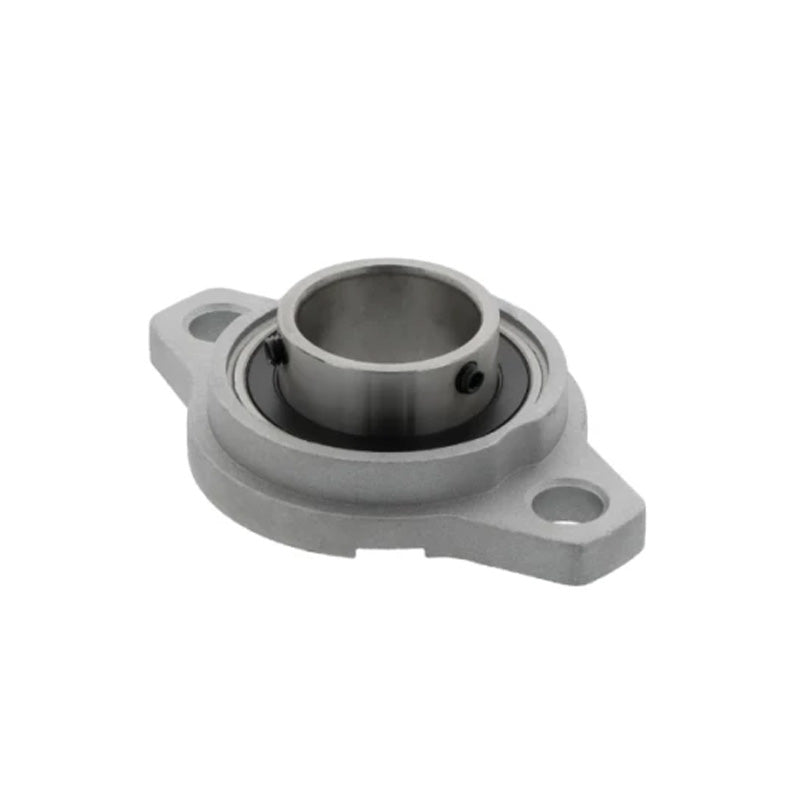

KFL000 Aluminium 2 Bolt Oval Bearing with Grub Screws 10mm Bore
KFL000 Aluminium 2 Bolt Oval Bearing with Grub Screws 10mm Bore
Regular price
CHF 11.27
ex VAT
Regular price
Sale price
CHF 11.27
ex VAT
In stock
Price Break
10+
CHF 10.03
19+
CHF 9.47
29+
CHF 9.35
39+
CHF 9.24
49+
CHF 9.13
74+
CHF 9.02
99+
CHF 8.45
199+
CHF 8.34
249+
CHF 8.23
499+
CHF 8.11
999+
CHF 7.89
Couldn't load pickup availability
Description
Description
|
KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 10mm
- Style:
- KFL
- Bolt Hole Centres:
- 45mm
Technical
Technical
| d | 10mm |
|---|---|
| a | 60mm |
| e | 45mm |
| g | 6mm |
| l | 12mm |
| N | 7mm |
| b | 36mm |
| n | 4mm |
| Bi | 14mm |
| t | 19.8mm |
| z | 16mm |
| Recommended fixing screw | M6 |
| Weight | 0.058 kg |
| Dynamic load | 4606 N ~ 469.681 kgf |
| Static load | 1906 N ~ 194.358 kgf |
