SKU: KFL08

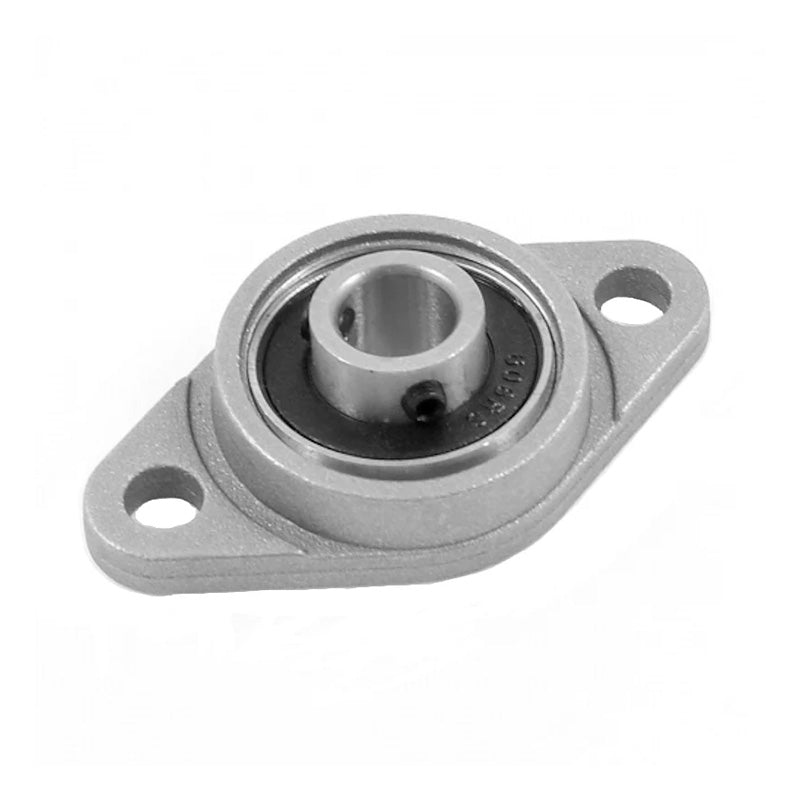

KFL08 Aluminium 2 Bolt Oval Bearing with Grub Screws 8mm Bore
KFL08 Aluminium 2 Bolt Oval Bearing with Grub Screws 8mm Bore
Regular price
CHF 7.38
ex VAT
Regular price
Sale price
CHF 7.38
ex VAT
In stock
Price Break
10+
CHF 6.57
19+
CHF 6.20
29+
CHF 6.13
39+
CHF 6.05
49+
CHF 5.98
74+
CHF 5.90
99+
CHF 5.54
199+
CHF 5.46
249+
CHF 5.39
499+
CHF 5.31
999+
CHF 5.17
Couldn't load pickup availability
Description
Description
|
KFL Series 2 Bolt Oval Cast Aluminium Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast aluminium housing. The bearing insert which self aligns in the housing has 2 grub screws to allow tightening against the shaft once fitted. The supplied insert can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Style:
- KFL
- Bolt Hole Centres:
- 36mm
Technical
Technical
| d | 8mm |
|---|---|
| a | 48mm |
| e | 36mm |
| g | 4mm |
| l | 9mm |
| N | 5mm |
| b | 27mm |
| n | 3mm |
| Bi | 11mm |
| z | 12.5mm |
| Recommended fixing screw | M4 |
| Weight | 0.02575 kg |
