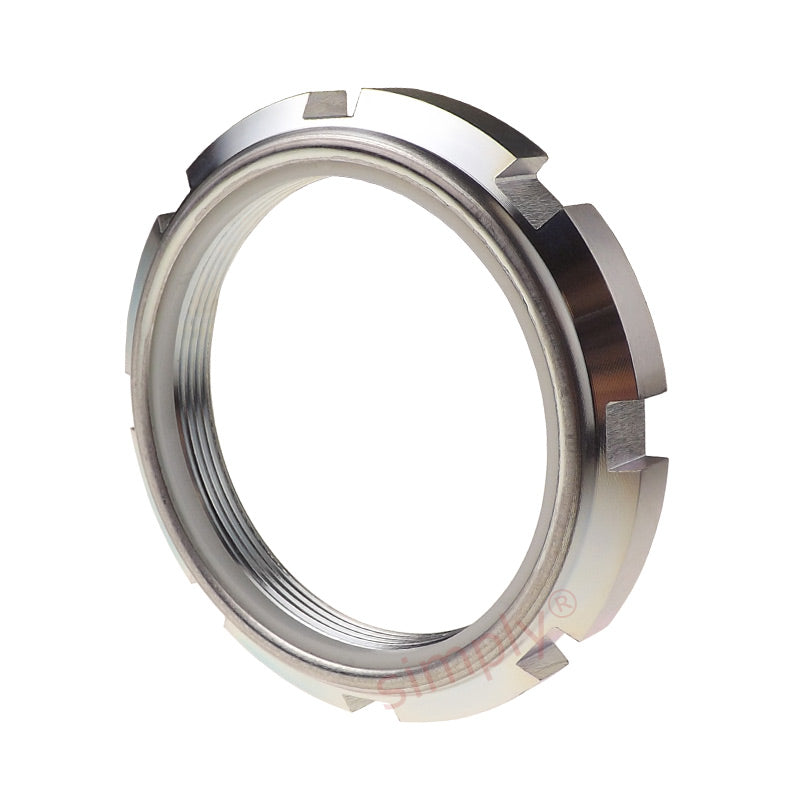

KM11 Nyloc Lock Nut (Lock Washer Type) M55x2mm
KM11 Nyloc Lock Nut (Lock Washer Type) M55x2mm
Regular price
CHF 15.00
ex VAT
Regular price
Sale price
CHF 15.00
ex VAT
In stock
Price Break
10+
CHF 11.85
19+
CHF 11.18
29+
CHF 11.05
39+
CHF 10.92
49+
CHF 10.78
74+
CHF 10.65
99+
CHF 9.98
199+
CHF 9.85
249+
CHF 9.72
499+
CHF 9.59
999+
CHF 9.32
Description
Description
|
Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M55x2

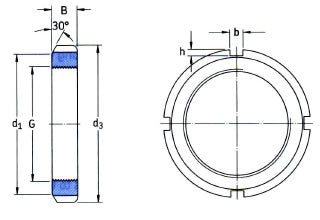

Technical
Technical
| G | M55x2mm |
|---|---|
| d1 | 67mm |
| d3 | 75mm |
| B | 11mm |
| b | 7mm |
| h | 3mm |
| Static axial load capacity | 91.5 kN |
| Weight | 0.15 kg |
| Lock nut | KM11 |
| Appropriate locking washer | MB11 |
| Appropriate spanner | HN11 |
