SKU: KM15-MB

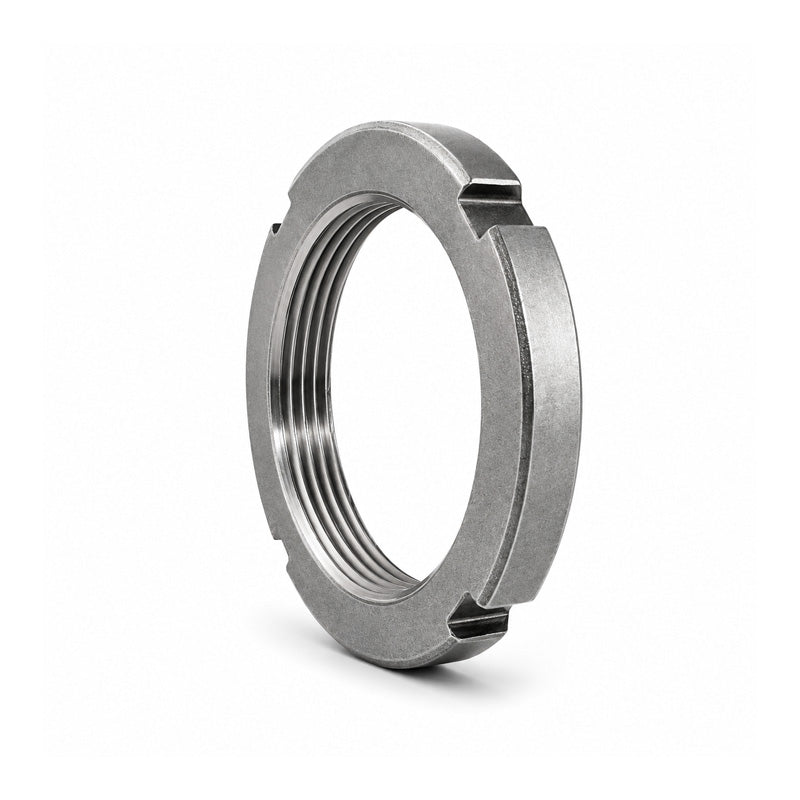

KM15 Lock Nuts for Adaptor and Withdrawal Sleeves 75x98x13mm

Name: KM15 Lock Nuts for Adaptor and Withdrawal Sleeves 75x98x13mm
Brand: Major Brand
SKU: KM15-MB
Price: 26.00 CHF
Availability: InStock

CHF 26.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 19.97

19+ CHF 18.85

29+ CHF 18.62

39+ CHF 18.40

49+ CHF 18.17

74+ CHF 17.95

99+ CHF 16.83

199+ CHF 16.60

249+ CHF 16.38

499+ CHF 16.16

999+ CHF 15.71

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: M75x2

Technical

G	M75x2mm
d1	90mm
d3	98mm
B	13mm
b	8mm
h	3.5mm
Weight	0.27kg
Appropriate locking washer	MB15

Reviews

View full details
