SKU: KM15-SKF

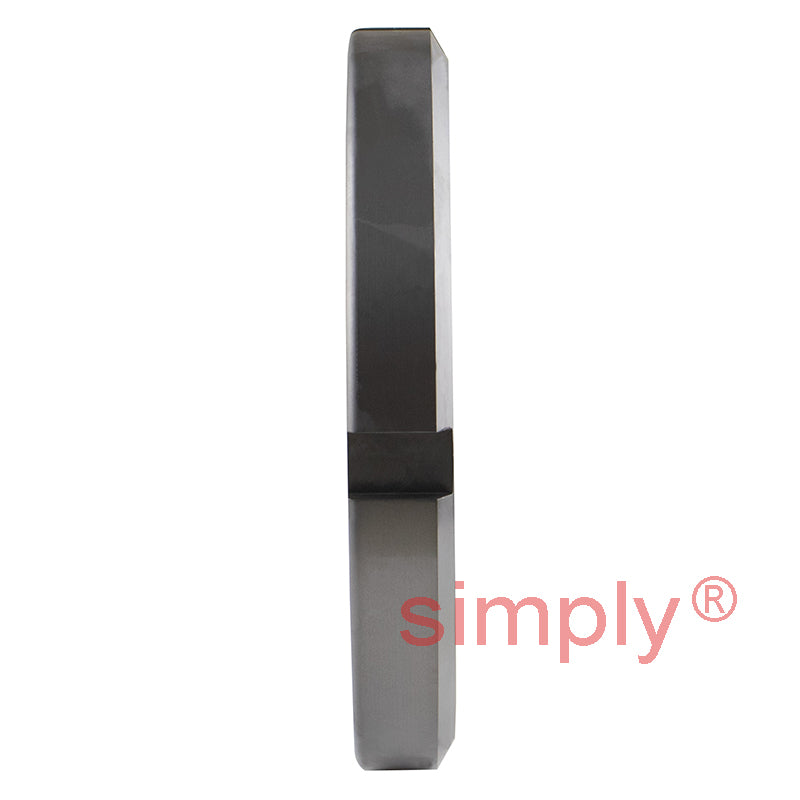

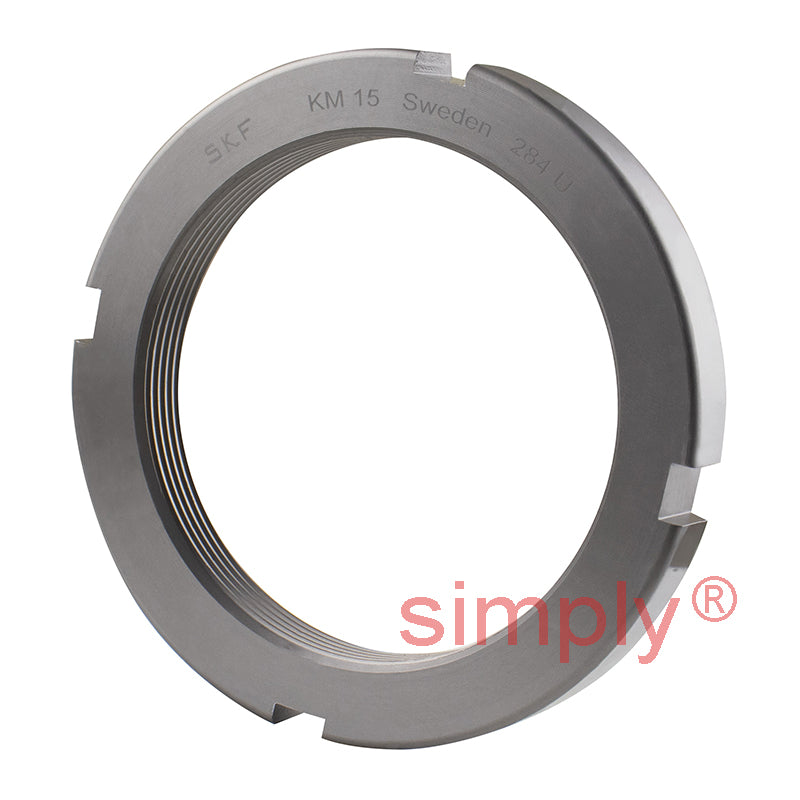

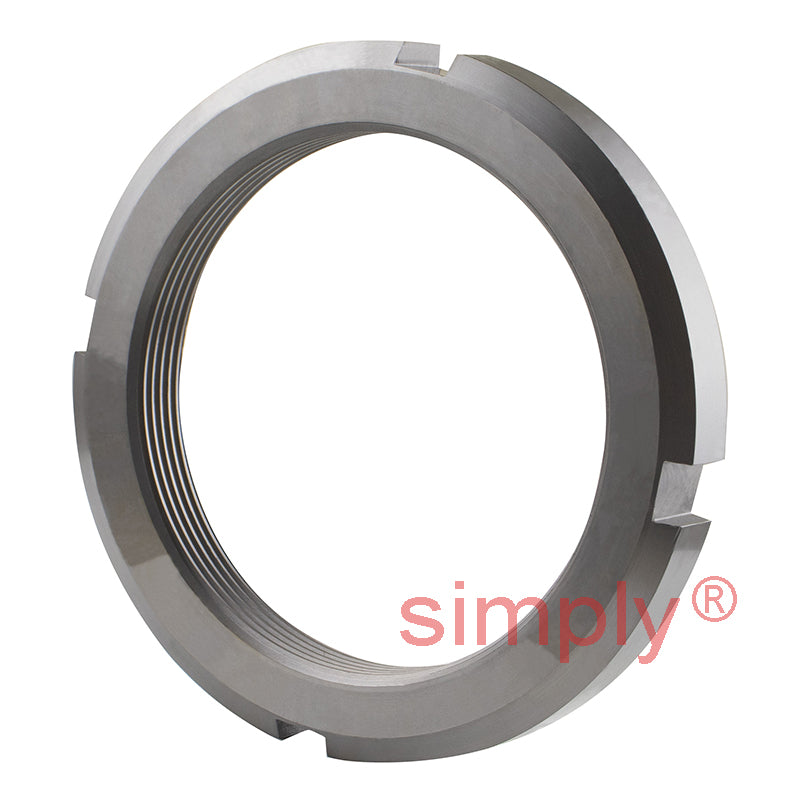

SKF KM15 Lock Nut (Lock Washer Type) M75x2mm
SKF KM15 Lock Nut (Lock Washer Type) M75x2mm
Regular price
CHF 20.00
ex VAT
Regular price
Sale price
CHF 20.00
ex VAT
In stock
Price Break
10+
CHF 15.32
19+
CHF 14.46
29+
CHF 14.28
39+
CHF 14.11
49+
CHF 13.94
74+
CHF 13.77
99+
CHF 12.91
199+
CHF 12.74
249+
CHF 12.56
499+
CHF 12.39
999+
CHF 12.05
Share this product
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M75x2
Technical
Technical
| d1 | 90mm |
|---|---|
| d3 | 98mm |
| B | 13mm |
| b | 8mm |
| h | 3.5mm |
| Axial load capacity | 134 kN |
| Weight | 0.27 kg |
| G | M75x2 |
| Designation | KM15 |
| Washer | MB15 |
| Spanner | HN15 |
