SKU: KM21-SKF

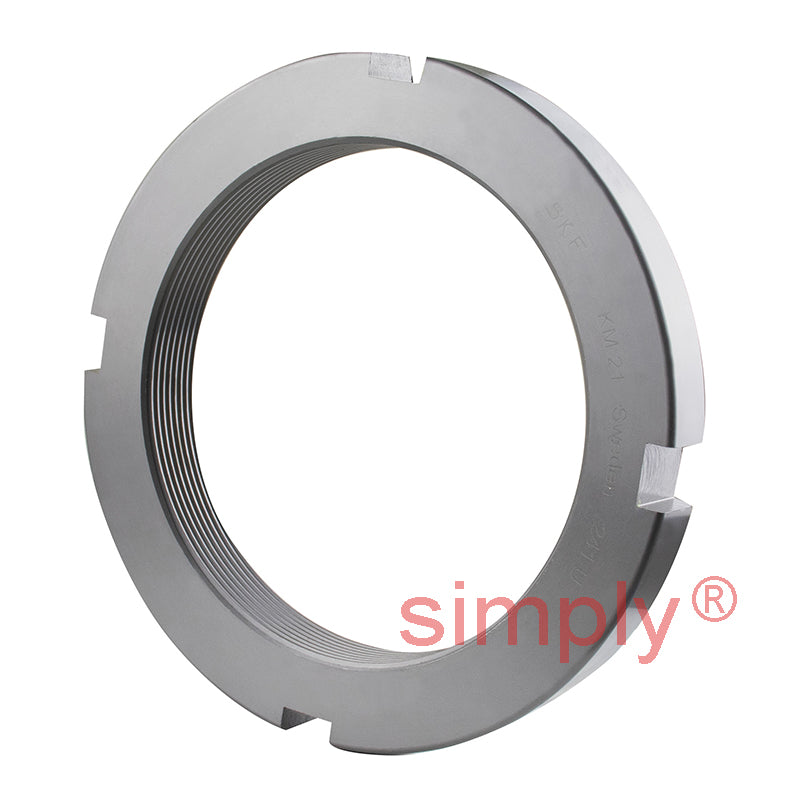

SKF KM21 Lock Nut (Lock Washer Type) M105x2mm
SKF KM21 Lock Nut (Lock Washer Type) M105x2mm
Regular price
CHF 63.12
ex VAT
Regular price
Sale price
CHF 63.12
ex VAT
In stock
Price Break
10+
CHF 56.18
19+
CHF 53.02
29+
CHF 52.39
39+
CHF 51.76
49+
CHF 51.13
74+
CHF 50.50
99+
CHF 47.34
199+
CHF 46.71
249+
CHF 46.08
499+
CHF 45.45
999+
CHF 44.18
Couldn't load pickup availability
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M105x2
Technical
Technical
| d1 | 126mm |
|---|---|
| d3 | 140mm |
| B | 18mm |
| b | 12mm |
| h | 5mm |
| Axial load capacity | 290 kN |
| Weight | 0.79 kg |
| G | M105x2 |
| Designation | KM21 |
| Washer | MB21 |
| Spanner | HN21 |
