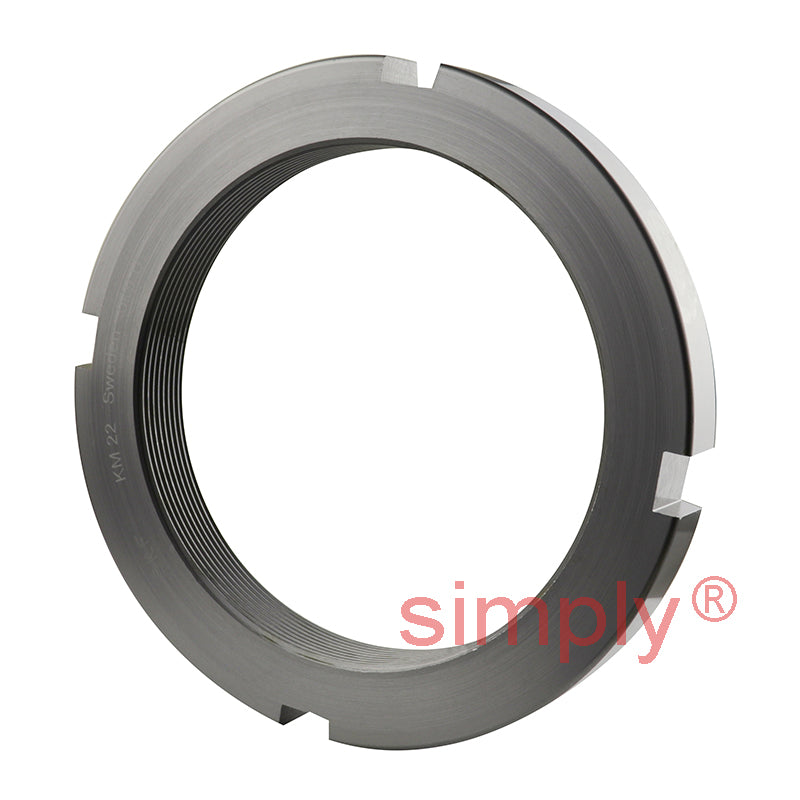

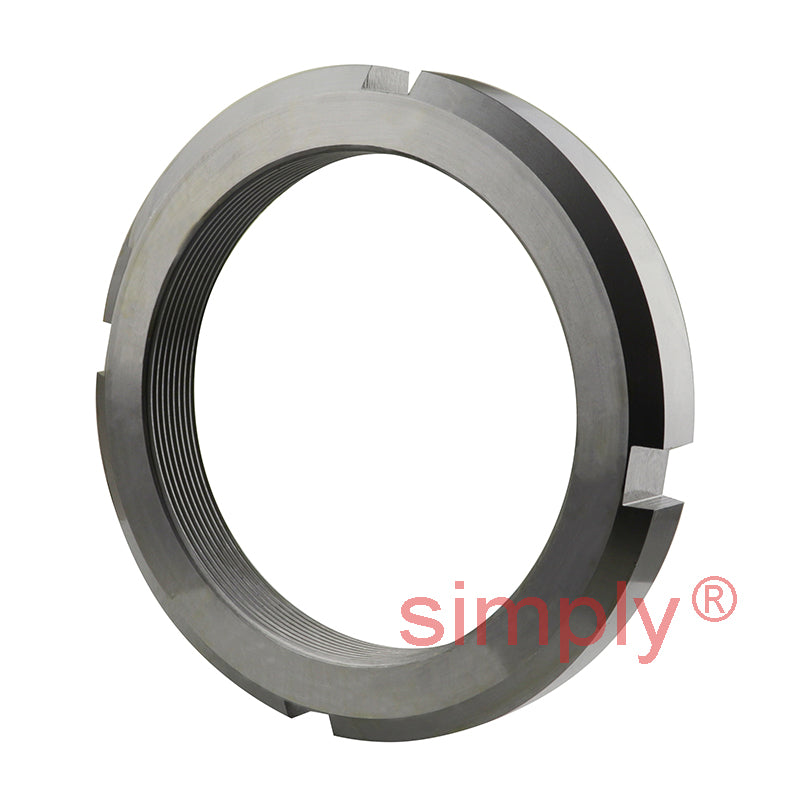

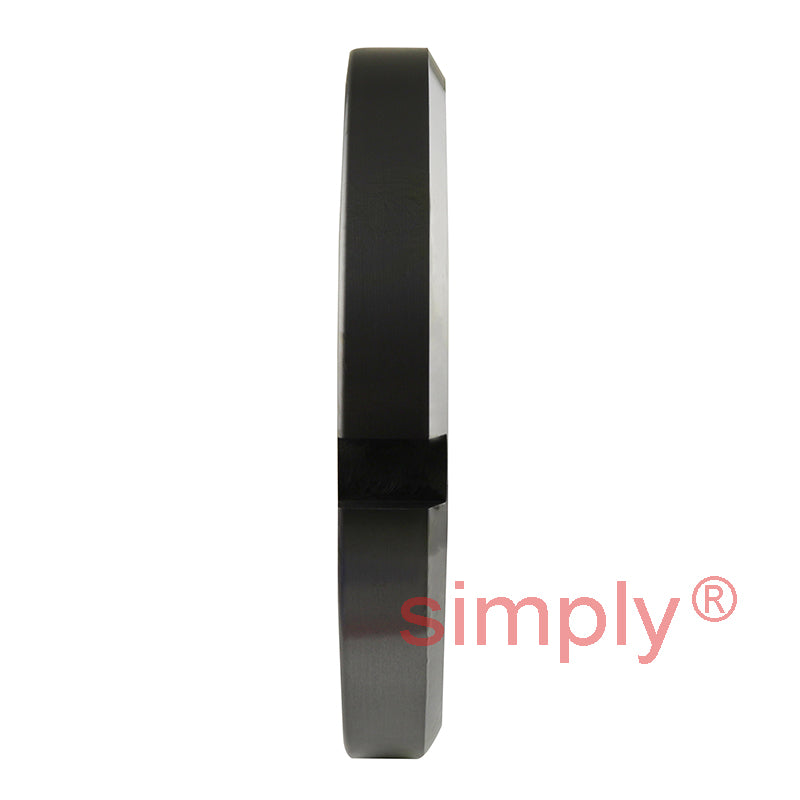

SKF KM22 Lock Nut (Lock Washer Type) M110x2mm
SKF KM22 Lock Nut (Lock Washer Type) M110x2mm
Regular price
CHF 68.00
ex VAT
Regular price
Sale price
CHF 68.00
ex VAT
In stock
Price Break
10+
CHF 53.77
19+
CHF 50.75
29+
CHF 50.14
39+
CHF 49.54
49+
CHF 48.94
74+
CHF 48.33
99+
CHF 45.31
199+
CHF 44.71
249+
CHF 44.10
499+
CHF 43.50
999+
CHF 42.29
Share this product
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M110x2
Technical
Technical
| d1 | 133mm |
|---|---|
| d3 | 145mm |
| B | 19mm |
| b | 12mm |
| h | 5mm |
| Axial load capacity | 310 kN |
| Weight | 0.87 kg |
| G | M110x2 |
| Designation | KM22 |
| Washer | MB22 |
| Spanner | HN22 |
