SKU: KM24-SKF

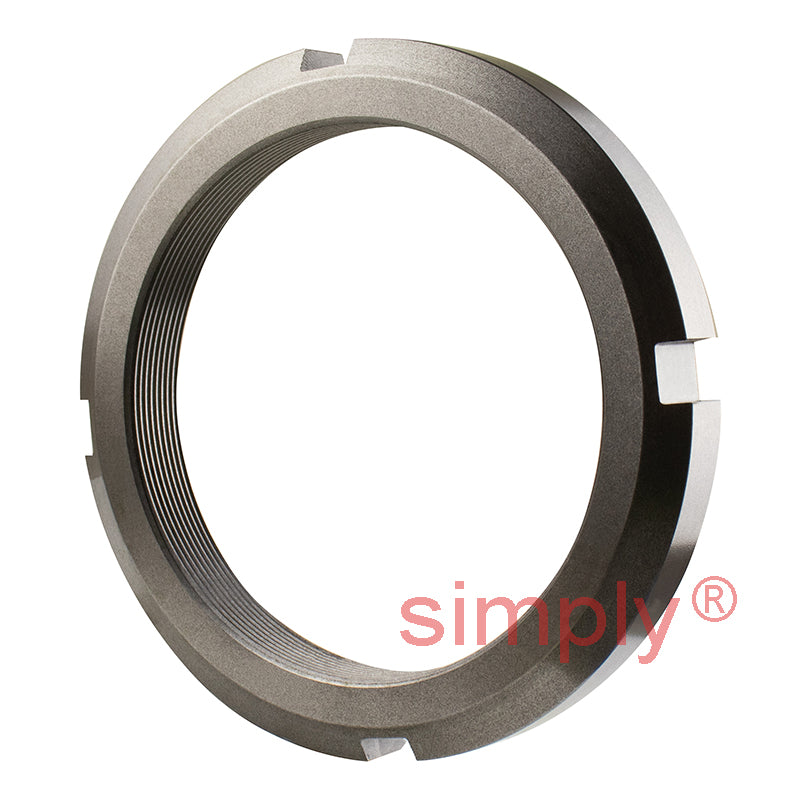

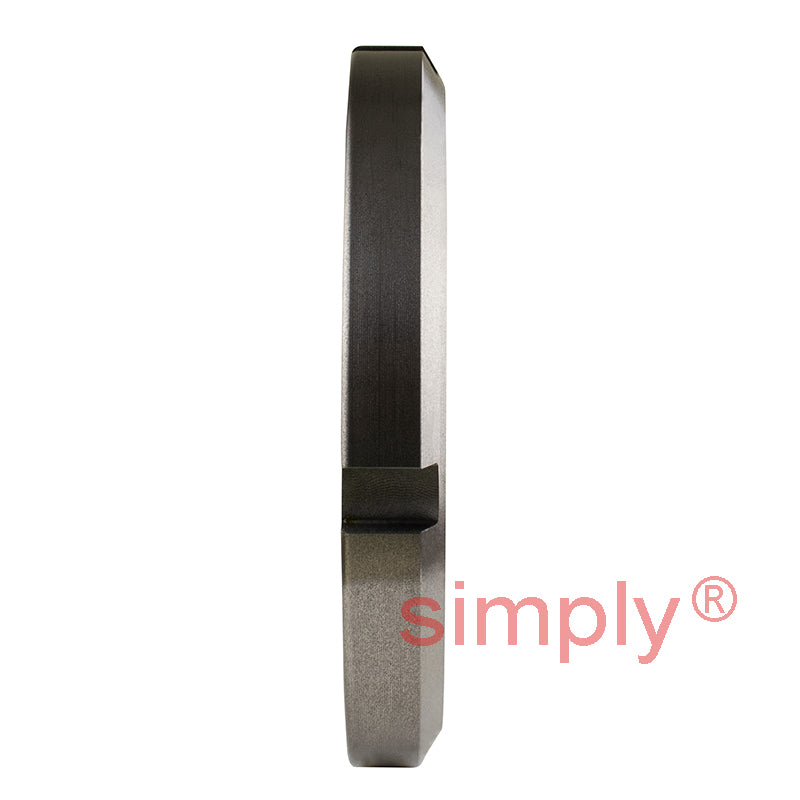

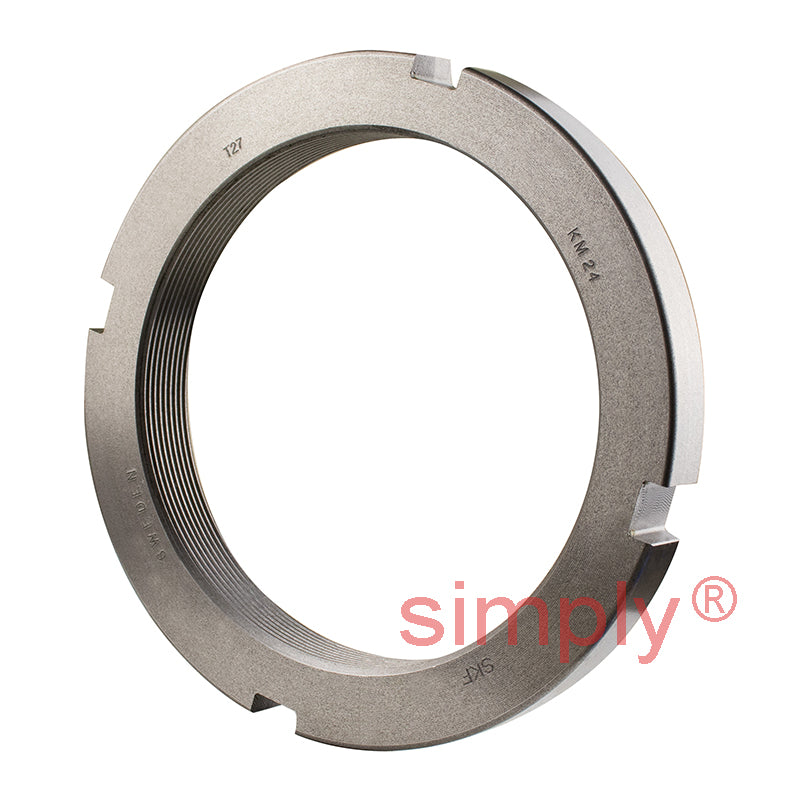

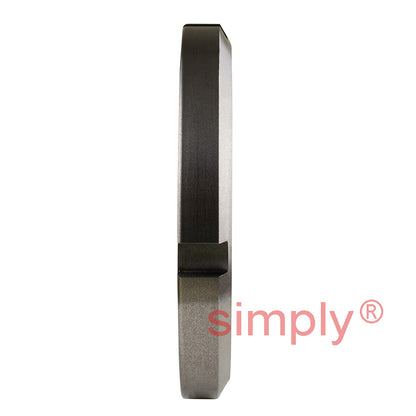

SKF KM24 Lock Nut (Lock Washer Type) M120x2mm
SKF KM24 Lock Nut (Lock Washer Type) M120x2mm
Regular price
CHF 104.00
ex VAT
Regular price
Sale price
CHF 104.00
ex VAT
In stock
Price Break
10+
CHF 82.68
19+
CHF 78.03
29+
CHF 77.11
39+
CHF 76.18
49+
CHF 75.25
74+
CHF 74.32
99+
CHF 69.67
199+
CHF 68.74
249+
CHF 67.82
499+
CHF 66.89
999+
CHF 65.03
Share this product
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M120x2
Technical
Technical
| d1 | 138mm |
|---|---|
| d3 | 155mm |
| B | 20mm |
| b | 12mm |
| h | 5mm |
| Axial load capacity | 340 kN |
| Weight | 0.97 kg |
| G | M120x2 |
| Designation | KM24 |
| Washer | MB24 |
| Spanner | TMFN23-30 |
