SKU: KM27-SKF

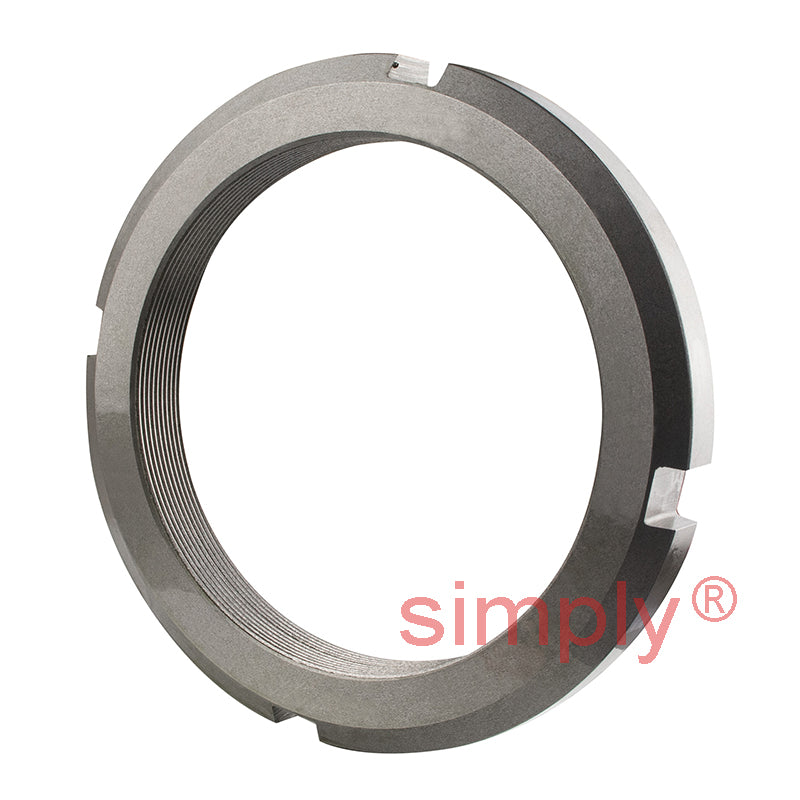

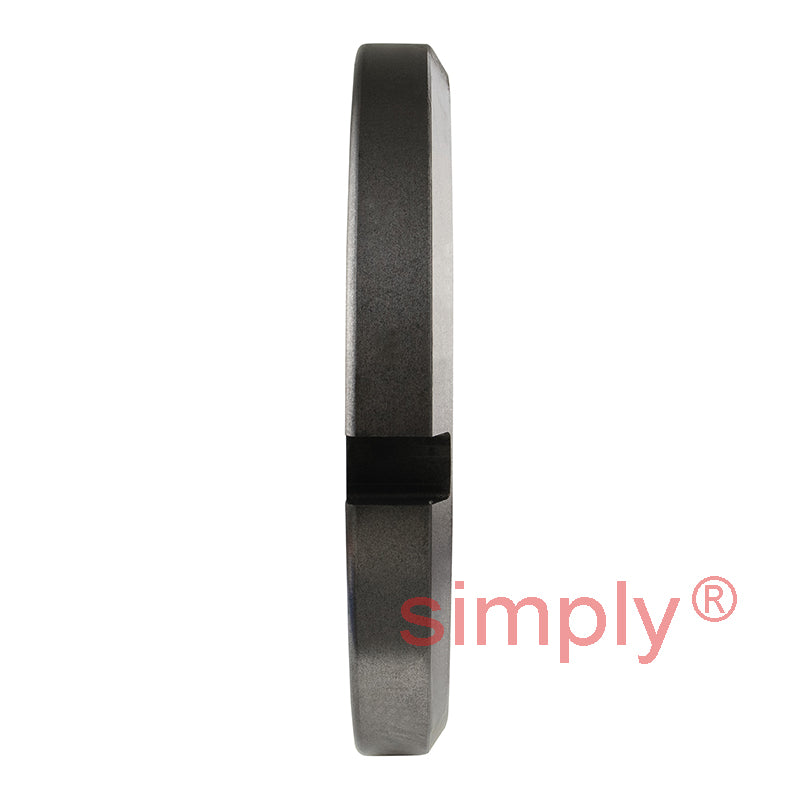

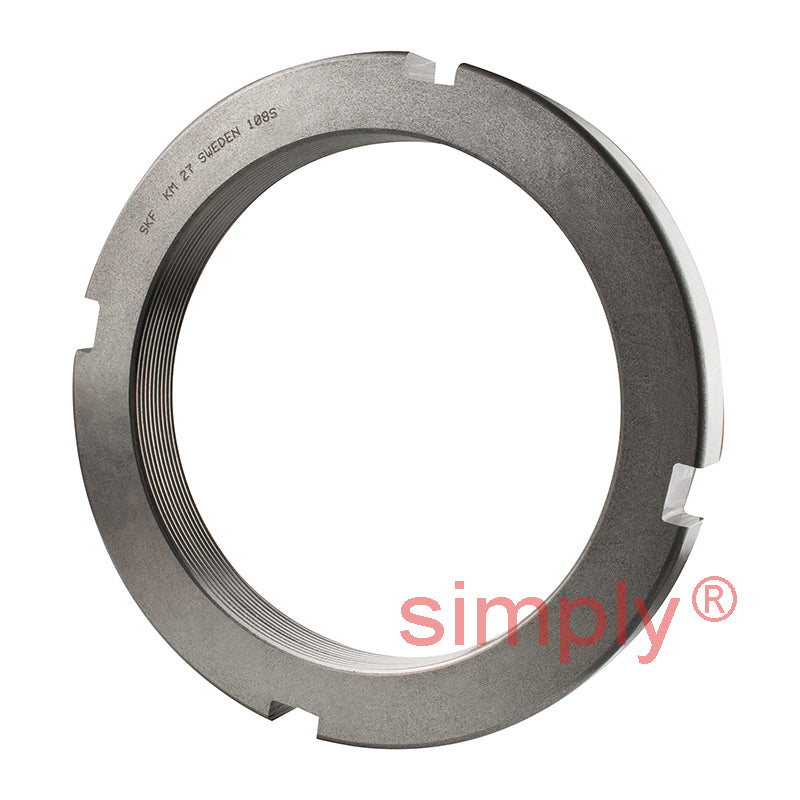

SKF KM27 Lock Nut (Lock Washer Type) M135x2mm
SKF KM27 Lock Nut (Lock Washer Type) M135x2mm
Regular price
CHF 103.86
ex VAT
Regular price
Sale price
CHF 103.86
ex VAT
In stock
Price Break
10+
CHF 92.44
19+
CHF 87.24
29+
CHF 86.20
39+
CHF 85.17
49+
CHF 84.13
74+
CHF 83.09
99+
CHF 77.90
199+
CHF 76.86
249+
CHF 75.82
499+
CHF 74.78
999+
CHF 72.70
Couldn't load pickup availability
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M135x2
Technical
Technical
| d1 | 160mm |
|---|---|
| d3 | 175mm |
| B | 22mm |
| b | 14mm |
| h | 6mm |
| Axial load capacity | 430 kN |
| Weight | 1.39 kg |
| G | M135x2 |
| Designation | KM27 |
| Washer | MB27 |
| Spanner | TMFN23-30 |
