SKU: KM28-SKF

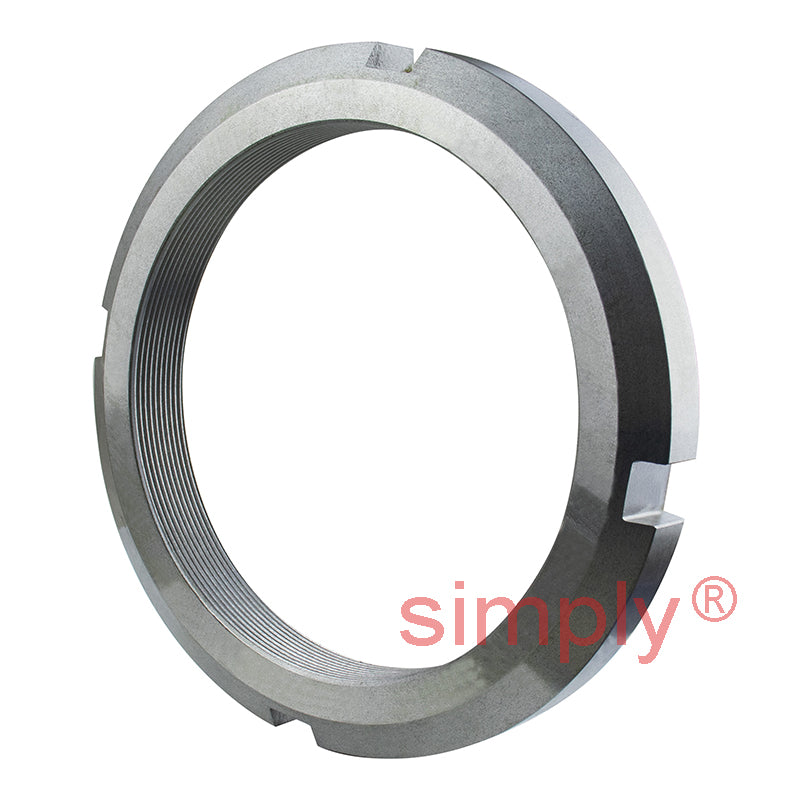

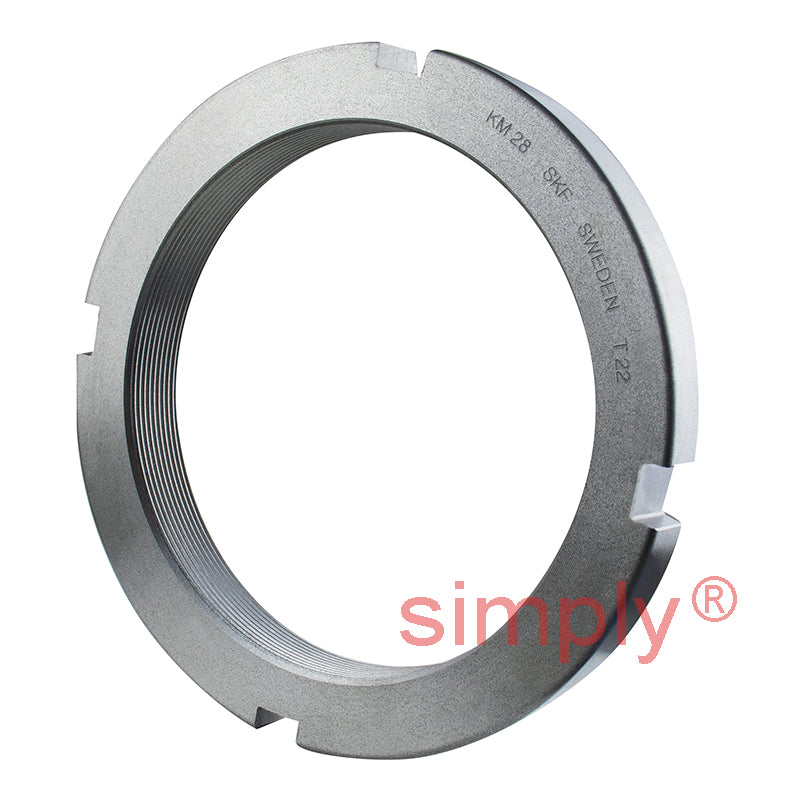

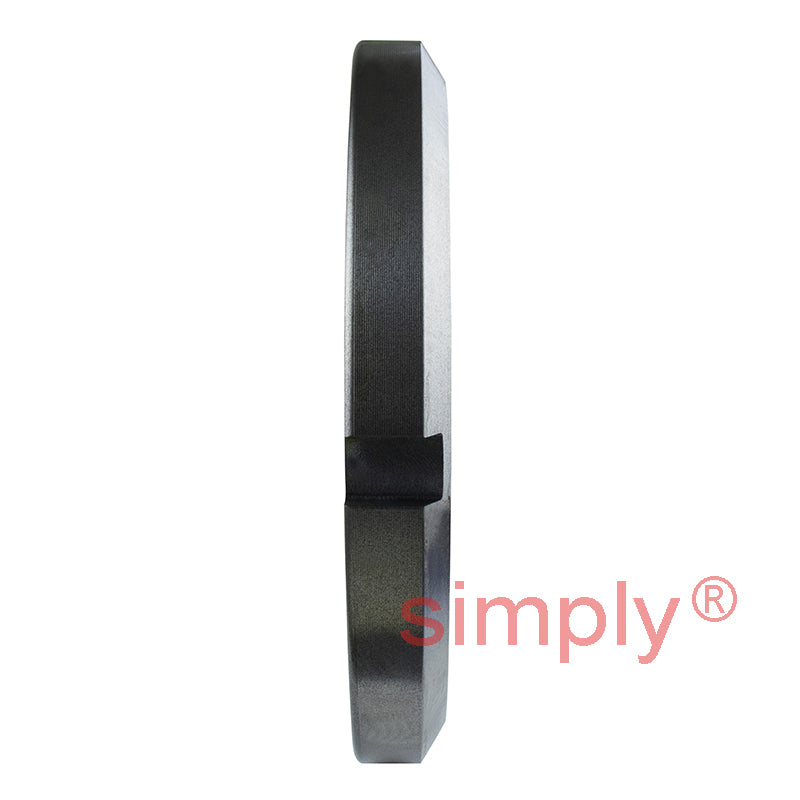

SKF KM28 Lock Nut (Lock Washer Type) M140x2mm
SKF KM28 Lock Nut (Lock Washer Type) M140x2mm
Regular price
CHF 152.00
ex VAT
Regular price
Sale price
CHF 152.00
ex VAT
In stock
Price Break
10+
CHF 120.62
19+
CHF 113.84
29+
CHF 112.49
39+
CHF 111.13
49+
CHF 109.77
74+
CHF 108.42
99+
CHF 101.64
199+
CHF 100.29
249+
CHF 98.93
499+
CHF 97.58
999+
CHF 94.87
Share this product
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M140x2
Technical
Technical
| d1 | 160mm |
|---|---|
| d3 | 180mm |
| B | 22mm |
| b | 14mm |
| h | 6mm |
| Axial load capacity | 430 kN |
| Weight | 1.4 kg |
| G | M140x2 |
| Designation | KM28 |
| Washer | MB28 |
| Spanner | TMFN23-30 |
