SKU: KM29-SKF

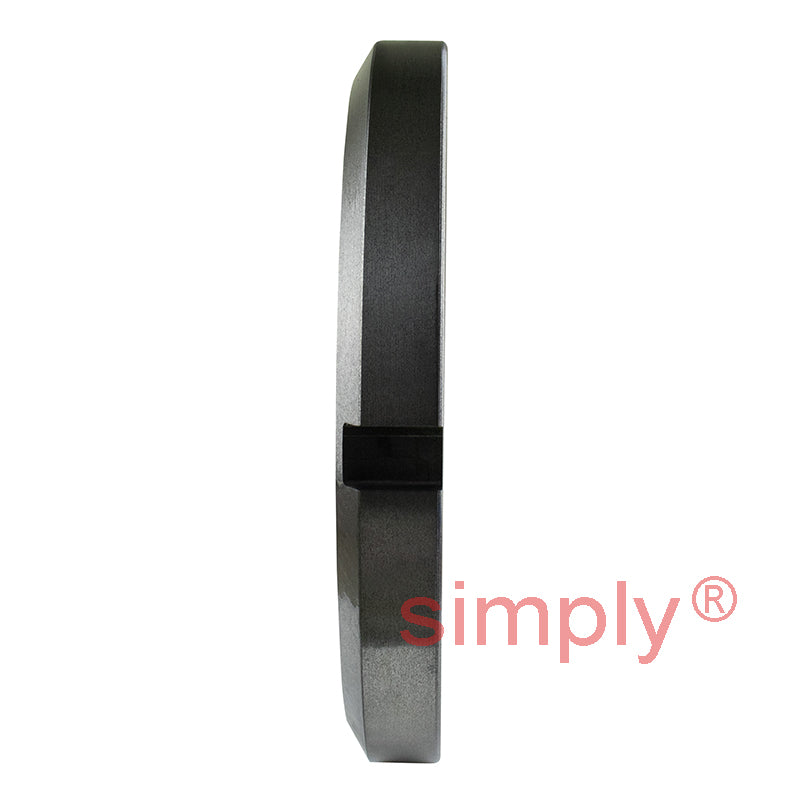

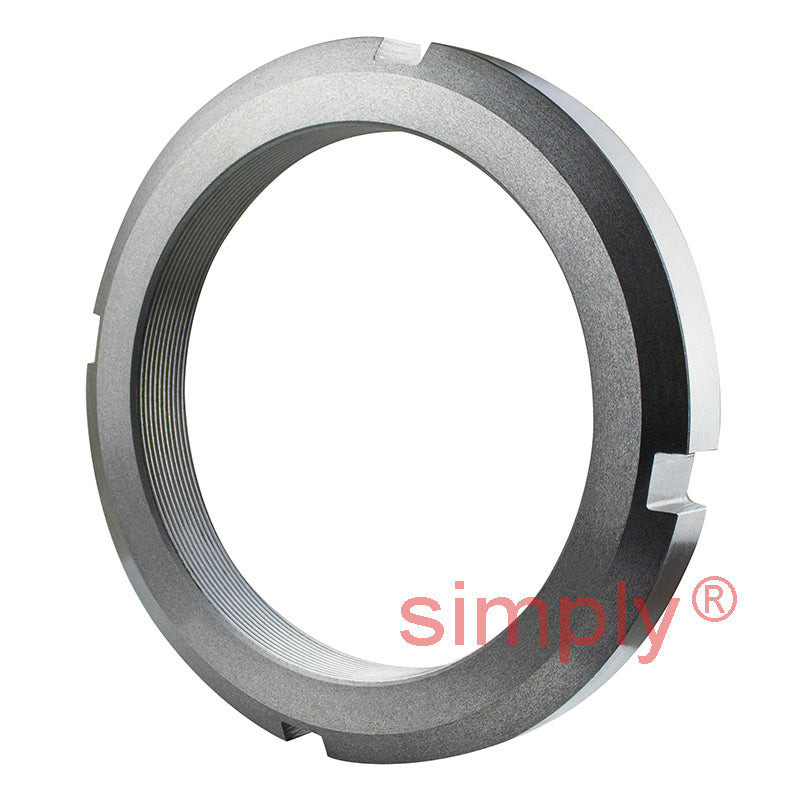

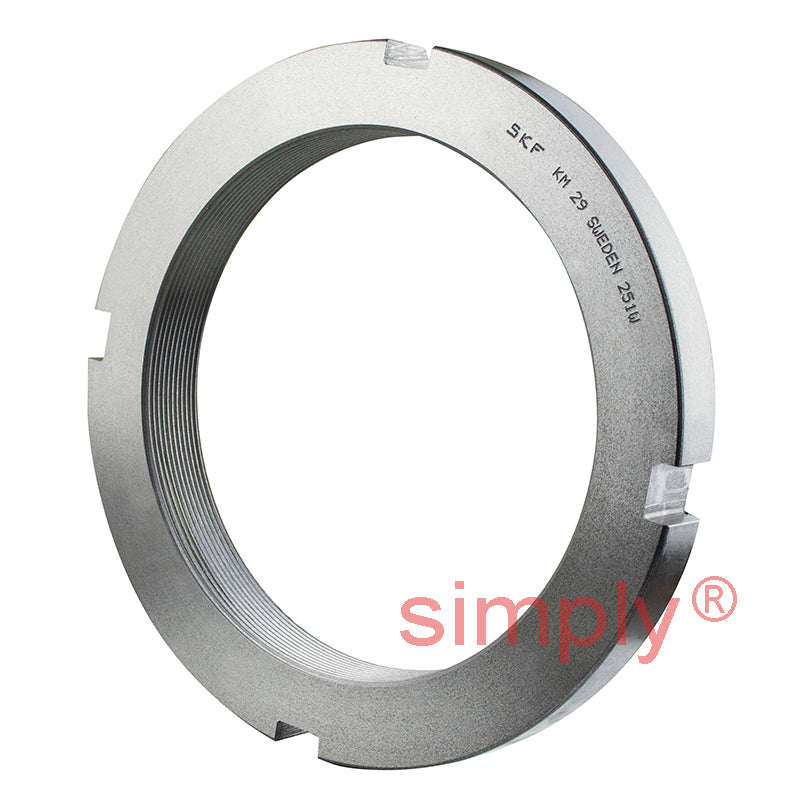

SKF KM29 Lock Nut (Lock Washer Type) M145x2mm
SKF KM29 Lock Nut (Lock Washer Type) M145x2mm
Regular price
CHF 167.48
ex VAT
Regular price
Sale price
CHF 167.48
ex VAT
In stock
Price Break
10+
CHF 149.06
19+
CHF 140.68
29+
CHF 139.01
39+
CHF 137.33
49+
CHF 135.66
74+
CHF 133.98
99+
CHF 125.61
199+
CHF 123.94
249+
CHF 122.26
499+
CHF 120.59
999+
CHF 117.24
Couldn't load pickup availability
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M145x2
Technical
Technical
| d1 | 171mm |
|---|---|
| d3 | 190mm |
| B | 24mm |
| b | 14mm |
| h | 6mm |
| Axial load capacity | 520 kN |
| Weight | 1.8 kg |
| G | M145x2 |
| Designation | KM29 |
| Washer | MB29 |
| Spanner | TMFN23-30 |
