SKU: KM32-SKF

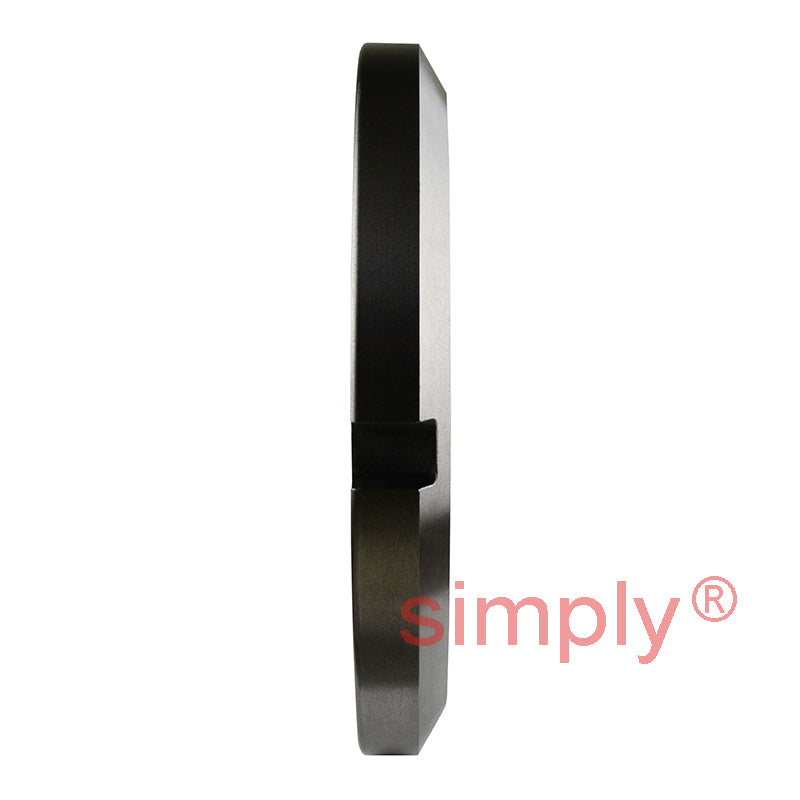

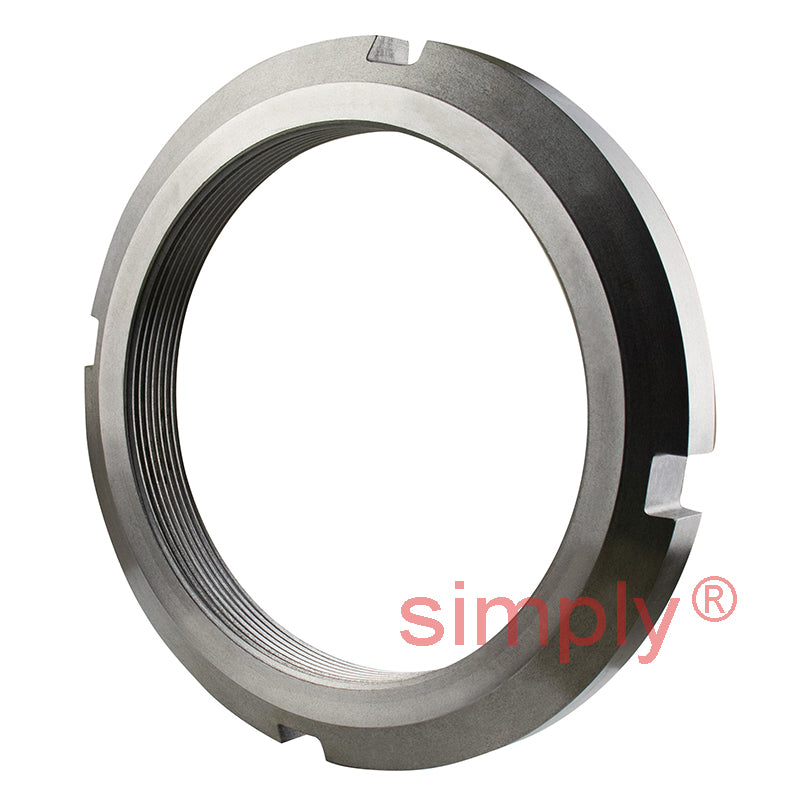

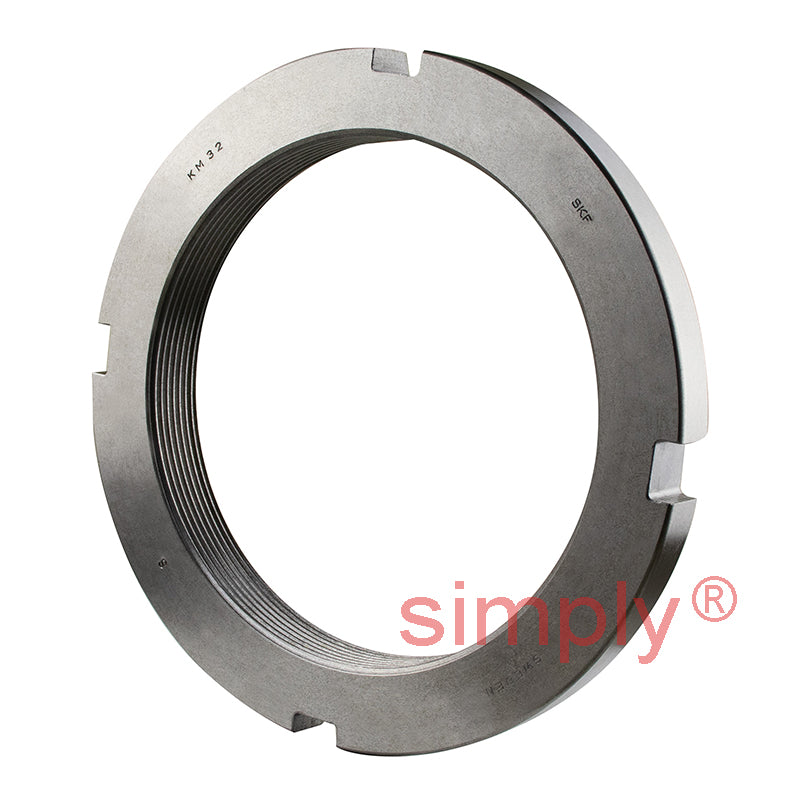

SKF KM32 Lock Nut (Lock Washer Type) M160x3mm
SKF KM32 Lock Nut (Lock Washer Type) M160x3mm
Regular price
CHF 163.00
ex VAT
Regular price
Sale price
CHF 163.00
ex VAT
In stock
Price Break
10+
CHF 129.86
19+
CHF 122.57
29+
CHF 121.11
39+
CHF 119.65
49+
CHF 118.19
74+
CHF 116.73
99+
CHF 109.43
199+
CHF 107.98
249+
CHF 106.52
499+
CHF 105.06
999+
CHF 102.14
Share this product
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M160x3
Technical
Technical
| d1 | 182mm |
|---|---|
| d3 | 210mm |
| B | 25mm |
| b | 16mm |
| h | 7mm |
| Axial load capacity | 585 kN |
| Weight | 2.29 kg |
| G | M160x3 |
| Designation | KM32 |
| Washer | MB32 |
| Spanner | TMFN30-40 |
