SKU: KM36-SKF

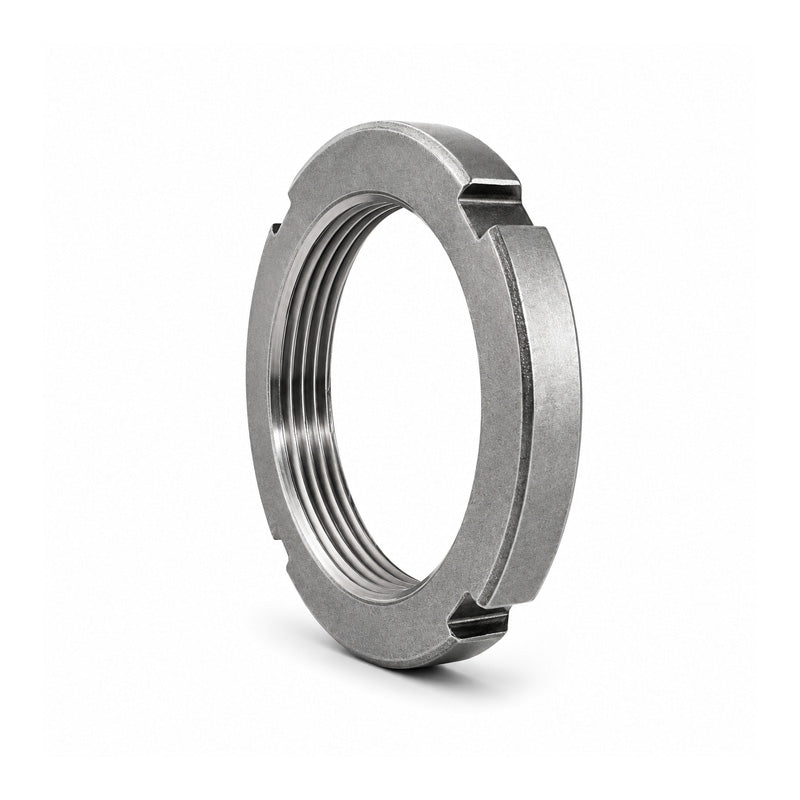

SKF KM36 Lock Nut (Lock Washer Type) M180x3mm
SKF KM36 Lock Nut (Lock Washer Type) M180x3mm
Regular price
CHF 202.66
ex VAT
Regular price
Sale price
CHF 202.66
ex VAT
In stock
Price Break
10+
CHF 180.37
19+
CHF 170.23
29+
CHF 168.21
39+
CHF 166.18
49+
CHF 164.15
74+
CHF 162.13
99+
CHF 152.00
199+
CHF 149.97
249+
CHF 147.94
499+
CHF 145.92
999+
CHF 141.86
Couldn't load pickup availability
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M180x3
Technical
Technical
| d1 | 203mm |
|---|---|
| d3 | 230mm |
| B | 27mm |
| b | 18mm |
| h | 8mm |
| Axial load capacity | 670 kN |
| Weight | 2.78 kg |
| G | M180x3 |
| Designation | KM36 |
| Washer | MB36 |
| Spanner | TMFN30-40 |
