SKU: KMFE13-SKF

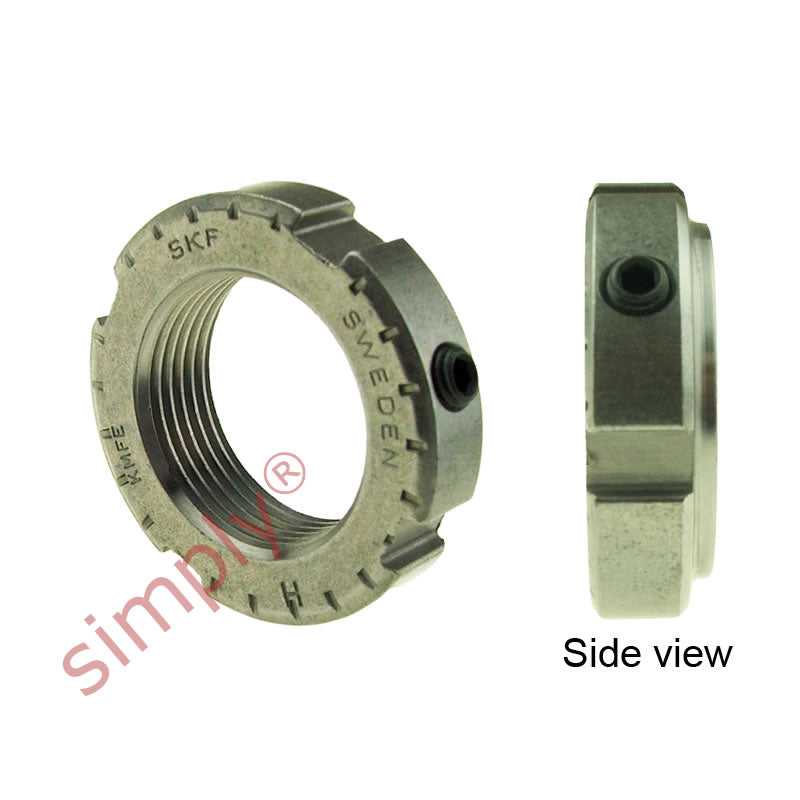

SKF KMFE13 Lock Nut with Locking Screw M65x2mm
SKF KMFE13 Lock Nut with Locking Screw M65x2mm
Regular price
CHF 24.00
ex VAT
Regular price
Sale price
CHF 24.00
ex VAT
In stock
Price Break
10+
CHF 18.92
19+
CHF 17.86
29+
CHF 17.65
39+
CHF 17.43
49+
CHF 17.22
74+
CHF 17.01
99+
CHF 15.94
199+
CHF 15.73
249+
CHF 15.52
499+
CHF 15.31
999+
CHF 14.88
Share this product
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M65x2
Technical
Technical
| d1 | 76mm |
|---|---|
| d3 | 85mm |
| B | 15mm |
| B1 | 12mm |
| b | 7mm |
| h | 3mm |
| Axial load capacity | 108 kN |
| Looseing torque | 130 Nm |
| Weight | 0.23 kg |
| G | M65x2 |
| Designation | KMFE13 |
| Spanner | HN13 |
| Grub | M6 |
| Screw tightening torque | 8 Nm |
