SKU: KMFE15-SKF

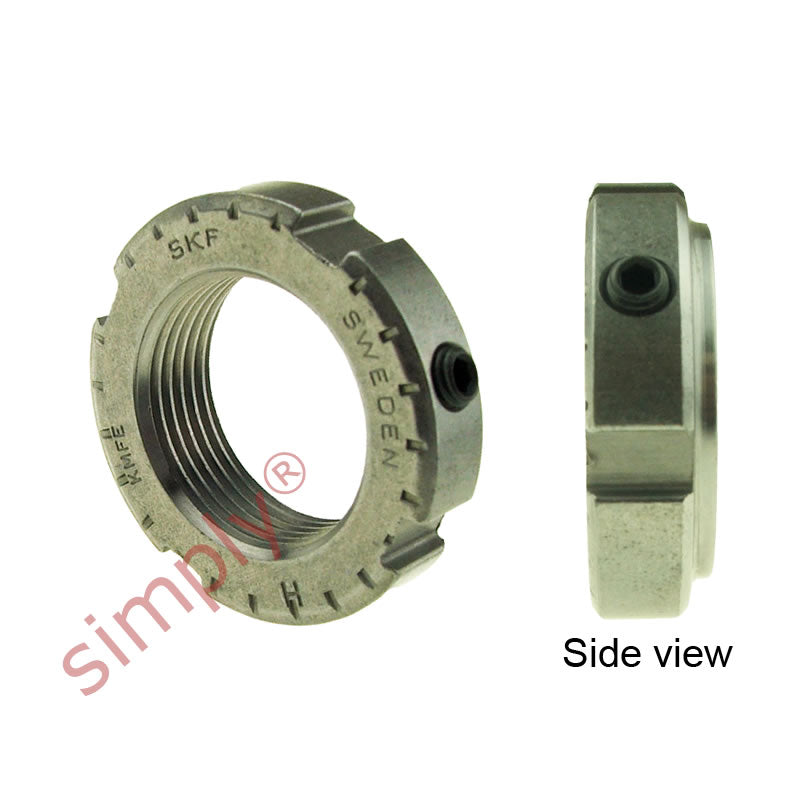

SKF KMFE15 Lock Nut with Locking Screw M75x2mm
SKF KMFE15 Lock Nut with Locking Screw M75x2mm
Regular price
CHF 74.57
ex VAT
Regular price
Sale price
CHF 74.57
ex VAT
In stock
Price Break
5+
CHF 73.82
10+
CHF 70.84
20+
CHF 69.35
50+
CHF 67.11
100+
CHF 65.62
500+
CHF 61.89
1000+
CHF 52.20
Couldn't load pickup availability
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M75x2
Technical
Technical
| d1 | 85mm |
|---|---|
| d3 | 98mm |
| B | 16mm |
| B1 | 13mm |
| b | 8mm |
| h | 3.5mm |
| Axial load capacity | 134 kN |
| Looseing torque | 150 Nm |
| Weight | 0.32 kg |
| G | M75x2 |
| Designation | KMFE15 |
| Spanner | HN15 |
| Grub | M6 |
| Screw tightening torque | 8 Nm |
