SKU: KMFE18-SKF

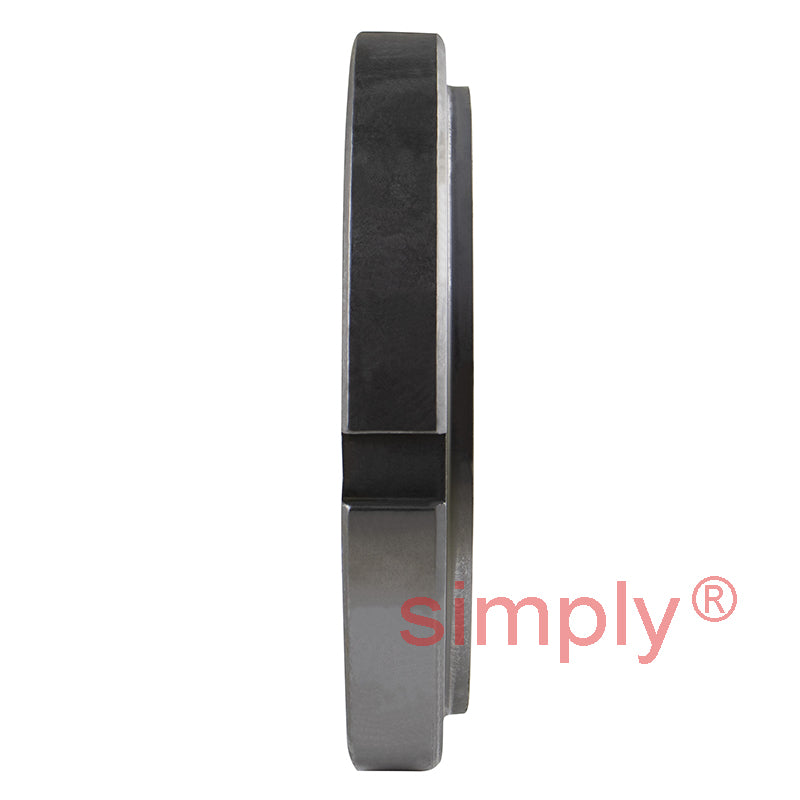

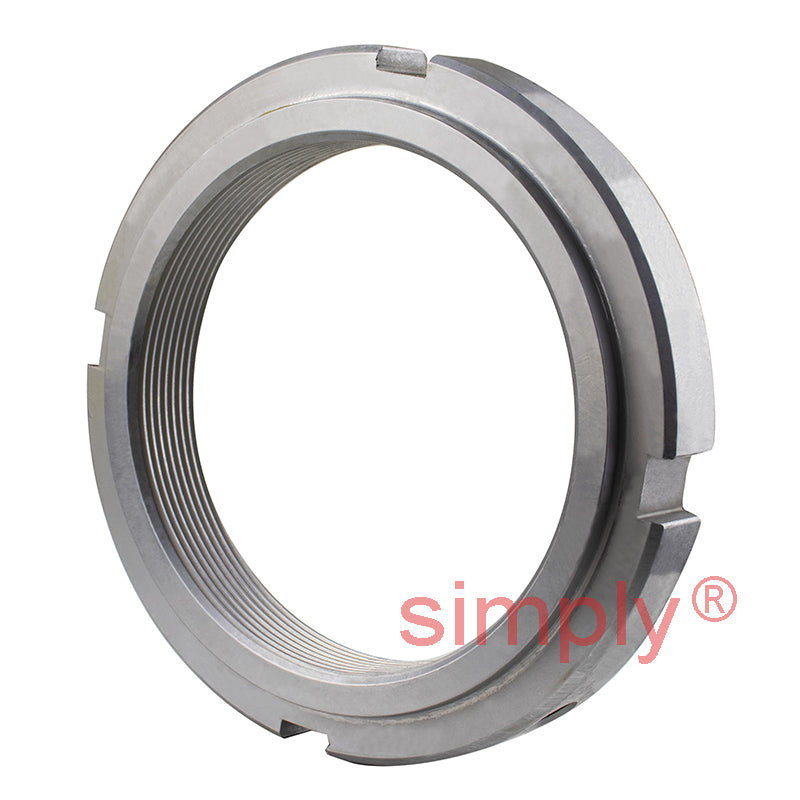

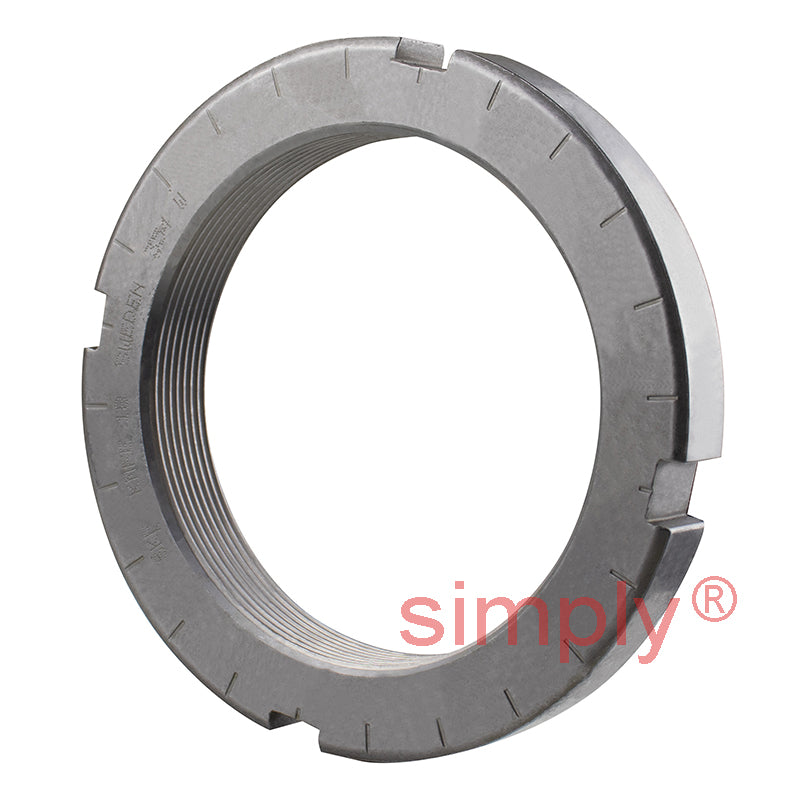

SKF KMFE18 Lock Nut with Locking Screw M90x2mm
SKF KMFE18 Lock Nut with Locking Screw M90x2mm
Regular price
CHF 54.00
ex VAT
Regular price
Sale price
CHF 54.00
ex VAT
In stock
Price Break
10+
CHF 42.57
19+
CHF 40.18
29+
CHF 39.70
39+
CHF 39.22
49+
CHF 38.74
74+
CHF 38.26
99+
CHF 35.87
199+
CHF 35.39
249+
CHF 34.92
499+
CHF 34.44
999+
CHF 33.48
Share this product
Description
Description
KMFE Lock Nuts: Featuring integrated locking screws are designed to securely position CARB toroidal roller bearings, sealed spherical roller bearings, and sealed self-aligning ball bearings on a shaft. They eliminate the need for a keyway, reducing shaft costs. Installation is fast and easy with the built-in set screw, and no separate locking device is needed. The maximum axial run-out for the locating face and thread is 0.02 to 0.03 mm.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M90x2
Technical
Technical
| d1 | 102mm |
|---|---|
| d3 | 120mm |
| B | 19mm |
| B1 | 15mm |
| b | 10mm |
| h | 4mm |
| Axial load capacity | 216 kN |
| Looseing torque | 335 Nm |
| Weight | 0.58 kg |
| G | M90x2 |
| Designation | KMFE18 |
| Spanner | HN18 |
| Grub | M8 |
| Screw tightening torque | 18 Nm |
